Automatic liquid filling machines

Automatic nail polish eye drop filling capping machine with robotic arm and servo motor system

Date:2015-07-20
Published by:PENGLAI INDUSTRIAL CORP LTD
Cel:+86-15811882441 +86-13077872898
Phone:+86-20-84206097 +86-755-25423447
Email:jackdu999@yahoo.com
Email:penglaipacking@gmail.com

Contact

Nail polish eye drops filling capping machine.jpg

Model YX-40G filling capping machine with mechanic robot fully automatic rotary filler capper servor motor system for Nail polish eye drops

Bottle Inlet Machine automatic bottles unscrambler

1. This machine applies to foodstuff, pharmacy, cosmetic, chemical and pesticide industries.

2. Suitable diameter of bottles: Ф40mm~Ф100mm 3. It utilizes stepless speed regulation technology.

Major Characteristics The template of this machine adopts stepless speed adjust foe slew, make all the bottles enter into conveyer belt in order under the rotary tangential force, less labor, boost production efficiency.

This machine can be used after electrified. Easing operating, it can be widely used for glass bottles, plastic bottles and polyester bottles for pharmaceutical, agrochemical, food, chemical etc.

it is a good choice for small, medium, large factory.

Main Performance Parameter: 1.Machine dimension (L×W×H) : 1700mm×1300mm×1350mm 2.Weight of machine : 300kg 3

.Suitable diameter of bottles : Ф40mm~Ф100mm 4.Diameter of turntable : Ф600-1000mm 5.Power supply : AC 220V; 50Hz 6.Power : 1.5kw 7.Production capacity : 60~120bottles/minute

Manipulator type double liquid filling machine is the latest product of my company developed in recent years, with the

microcomputer steps set wriggle pump machine adopts precision ceramic pump) (special occasions and has the automatic

filling, automatic plug, screw cover a variety of functions. Under the machine configuration domestic unique dedicated

manipulator, and screw cap in the form of swing arm, accurate under cover, screw cap adopt servo motor torque mode,

screw cap firmness, convenient adjustment so as to realize fully automated.

Features of rotary filling capping machine

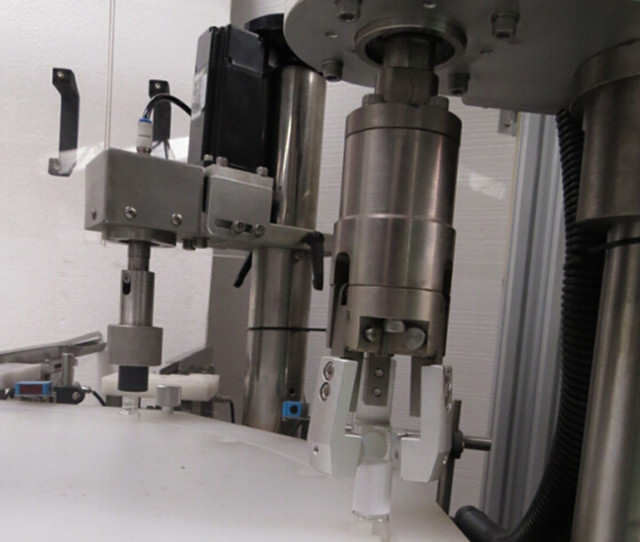

robotic arm for Nail polish eye drops filling capping machin

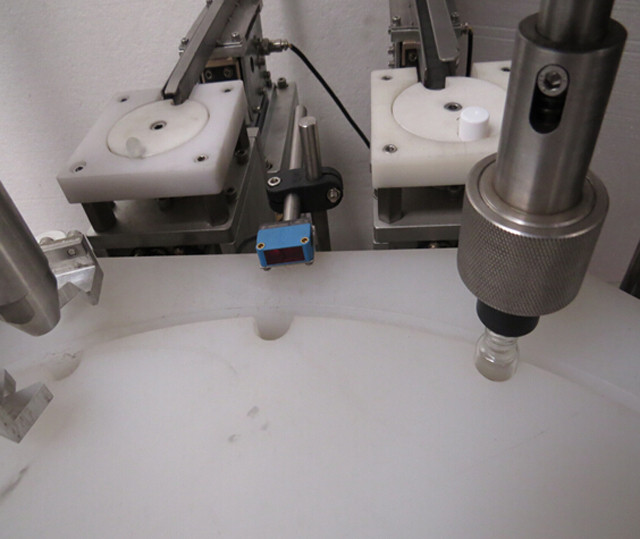

capping head for the Nail polish eye drops filling capping m



1. The setting of the microcomputer, the load precision, convenient operation.

2. The filling system can be customized to suction function, no drop leak.

3. Using manipulator automatic brush, spiral cover.

4. Automatic stop function, for any orbital consecutive without filling, automatic stop without cover.

Technical parameters of model YX-40G rotary filling capping machine with manipulator(mechanical robot)

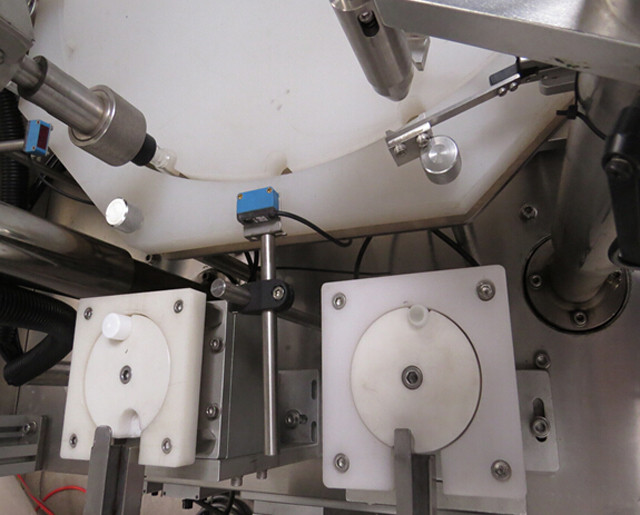

ceramic pump of Nail polish eye drops filling capping machin

Model YX-60G

Applicable specifications: 2-30 ml

Production capacity: 40-60 / minute

Filling accuracy: + / - 0.5% or less;

Power supply: 22 v50hz

Spin (rolling) cover rate: 99% or higher

Automatic plug rate: 99% or higher

Source: 2 m3 / h, 0.4 to 0.8 Mpa

Power: 1.0 KW

Machine net weight: 400 kg

Dimension: 2400 * 1100 * 1500 mm

Basic configuration for model YX-40G filling capping machine with mechanical robot

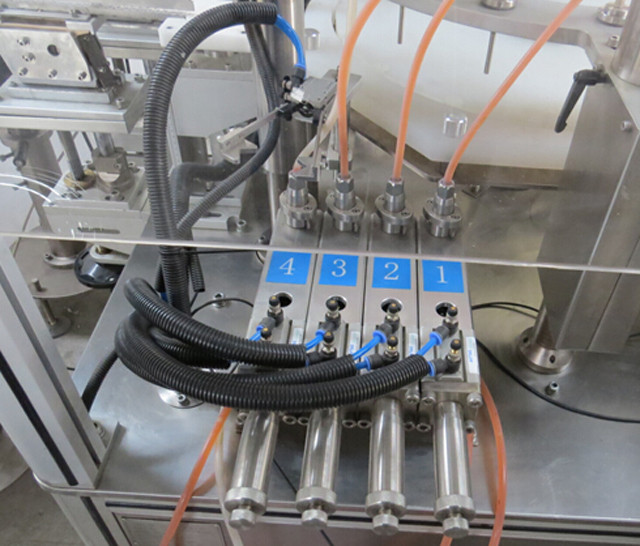

close details of ceramic pumps of the Nail polish eye drops



Number

Item

Model

Brand

Number

Mark

1

Touch screen

TK6070IK

Wenview

1



   2

PLC controller

DVP-32EH00T3

Delta

1



3

plc module

DVP08HN11T

 Delta

1



4

Inverter

VFD-M 1.5kw

Delta

1

Three phase 220V

5

Inverter

VFD-M 0.75KW

Delta

1

Three phase 220V

6

Servor driver

400W

Delta

1

Three phase 220V with motor

7

photo-electric

switch

SICKWZ1251



5



8

Magnetic switch





2



9

   Rotary encoder



OMRON

1



10

Selenoid Valve





11

24V coil

11

Air Switch3P

DZ47-60 D32

Chint

1



12

Air Switch 2P

DZ47-60 C25

CHINT

1



23

AC Contactor

LC1E2510

Schneider

1



24

Imediate Relay

RXM2LB2BD 24V5A

Schneider

4



25

Switch

NES-100-24

Mingwei

1



26

Overload Microswitch

TZ7311

TEND

1

with Glove

27

Door-trip





8

with Glove

28

Terminal





1

50Bitmap Common

29

Terminal





1

10Bitmap Common

30

Micarta





1



Accessory part for rotary filling sealing machine:

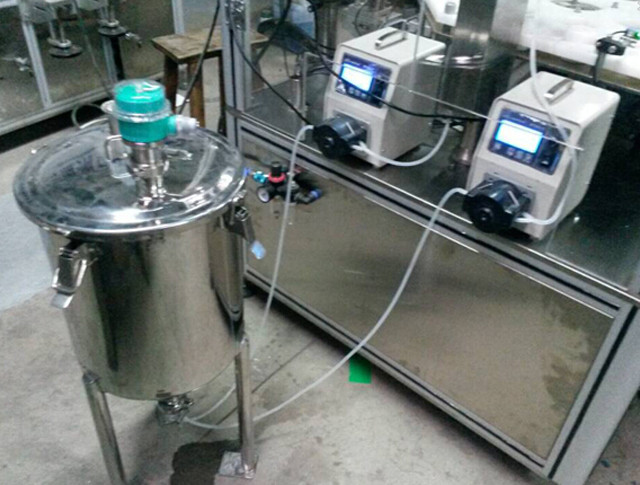

material holding tank of the Nail polish eye drops filling c

40L material tank with SUS316 stainless steel contact part

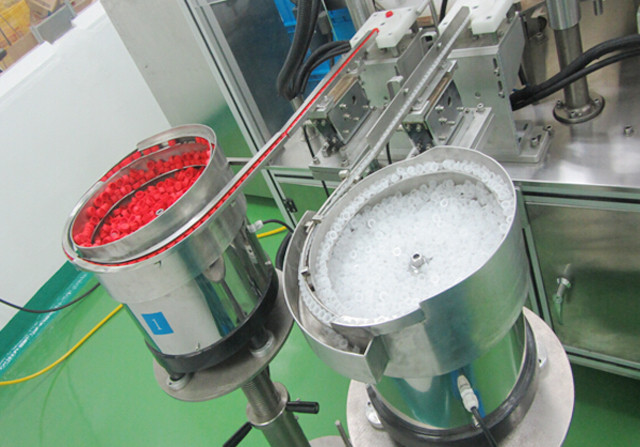

cap and plugger vibrator bowls of the Nail polish eye drops

Vibrator bowls for caps automatic falling system

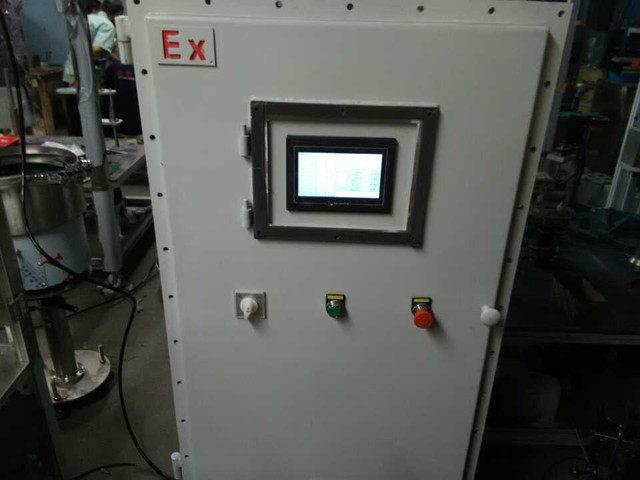

electrical box of the Nail polish eye drops filling capping

EX wire boxes for combustible&volatile liquid

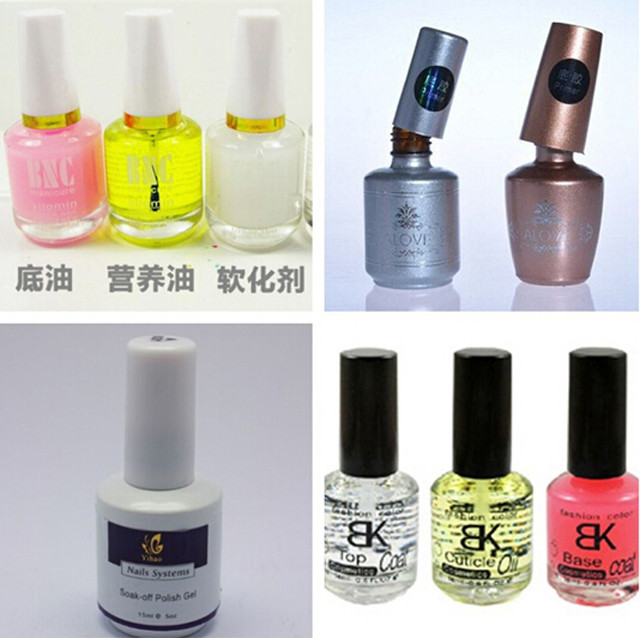

Samples from model YX-40G as final product like perfume liquid

final products by the Nail polish eye drops filling capping

sample products by the Nail polish eye drops filling capping

After-sales service of filling capping machine for cosmetic&pharma liquid

Guarantee: for all the machine, it claims one year for guarantee.(Excluded from the warranty are problems due to accidents, misuse , misapplication, storage damage, negligence, or modification to the Equipment or its components.

ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)
Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine (The time of train depend on you worker).

The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician USD50 per day. also you can go to our factory to do training.
After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as above).
