semi automatic liquid filling machines

semi automatic wine beverage drink glass bottle filling machine electric rotary liquid filler bottling equipment

Date:2015-08-25
Published by:PENGLAI INDUSTRIAL CORP LTD
Cel:+86-15811882441 +86-13077872898
Phone:+86-20-84206097 +86-755-25423447
Email£ºjackdu999@yahoo.com
Email£ºpenglaipacking@gmail.com

Contact



Semi automatic wine alchohol liquid beverage drinks rotary filling machine 12 filling nozzles liquid filler equipment



Application of wine bottling machine :

shrink film packing of wine beverage drink glass bottle fill

Suitable for all kinds of bottle types.Widely applied to all kinds of liquid beverage without gas

 such as wine,juice,water etc.



1.This 12 heads grape wine filling machine , wine bottle filler has small volume and light weight, It’s convenient to operate and maintain.



2.Grape wine filling machine , wine bottle filler can be used for non-air drinks such as fruit juice, vinegar,wine,fruit wine, mineral water and pure water.



3.This 12 head grape wine filling machine adopts the electric device as it’s power,which is easy to contral.



4.Grape wine filling machine is assured one year guarantee and lifelong maintance, if any part is demaged , we can offer a new one without charge .



Technical parameter of grape wine filling machine:

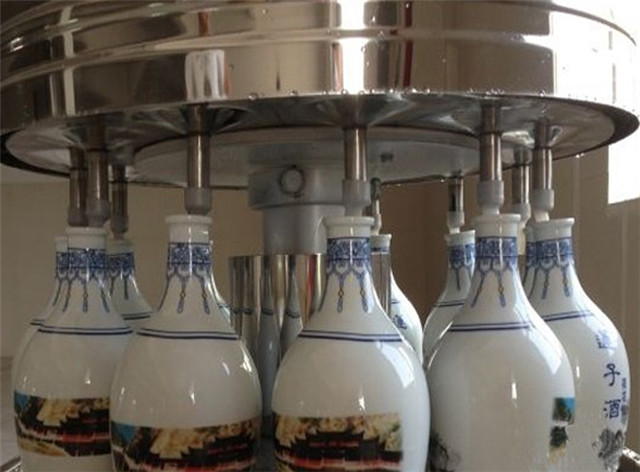

filling nozzle of the wine beverage drink glass bottle filli



Model

YX-WF12

voltage

220V 50HZ 370W

Filling range

150-800ml

Height of bottle

60-320mm

Filler

12 heads

Filling speed

2400 bottles/h

Filling precision

≤±1%

Weight
150kg
Size 800*600*1700mm



Grape wine filling machine semi automatic glass bottle beverage alchohol filler :

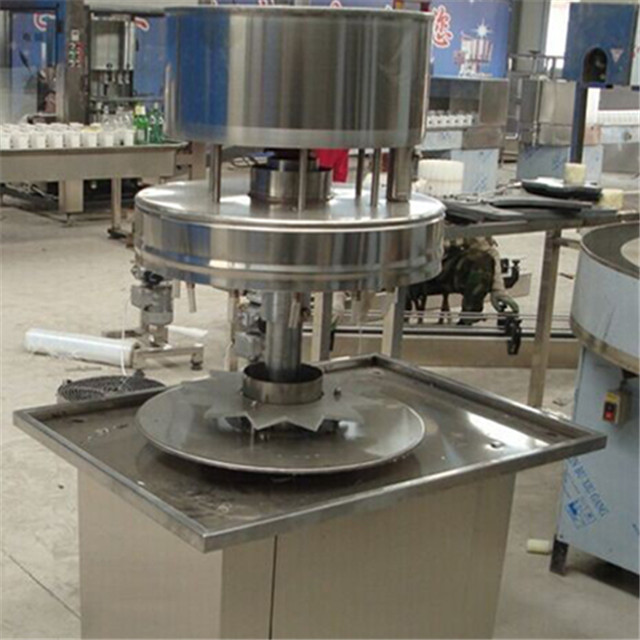

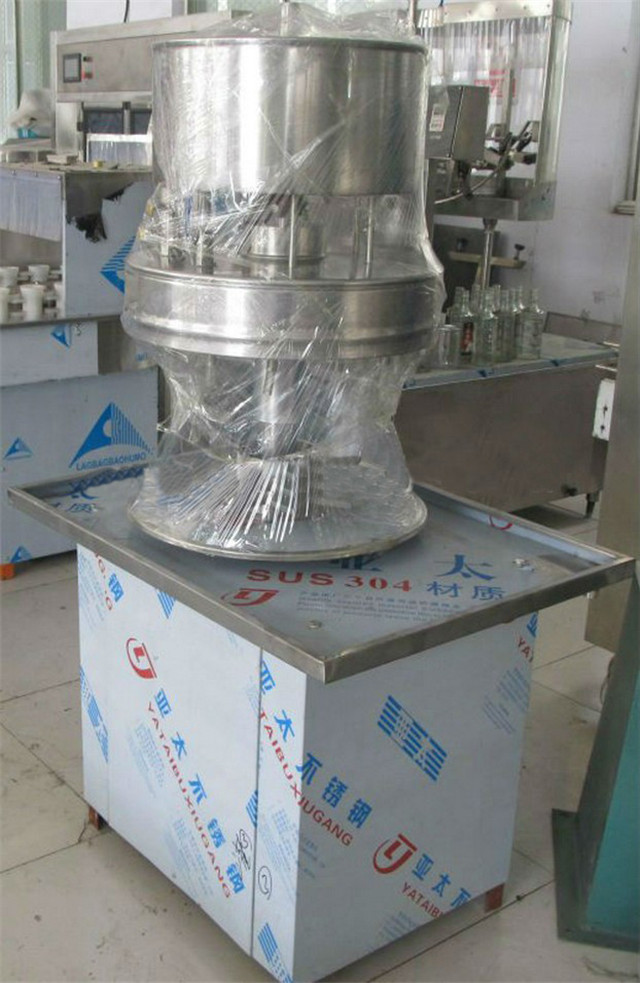

close view of the wine beverage drink glass bottle filling m

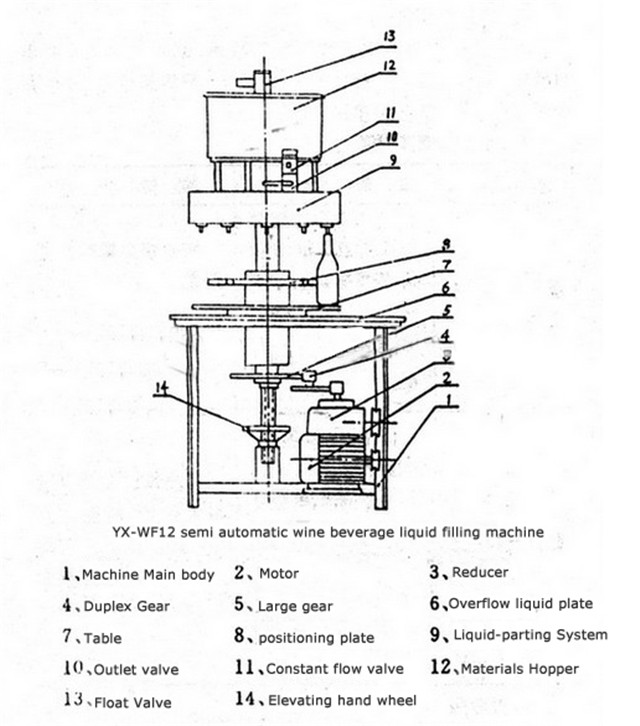

 Working process of grape wine filling machine:



 structure of the wine beverage drink glass bottle filling ma

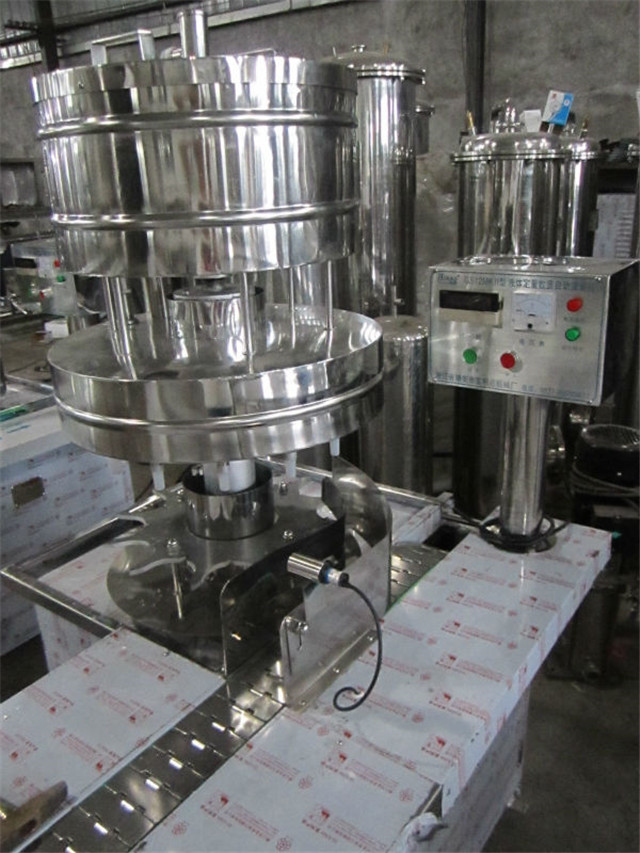

Semi automatic wine beverage filling machine equipped with conveyor belt for automated production

details of the wine beverage drink glass bottle filling mach

Wine bottles applicable for filling

wine bottles to be filled by the semi auto liquid bottling m

Packaging of semi automatic model YX-WF12 filling nozzels wine liquid filling machine

wooden case packaging of the semi-auto liquid bottling machi
