Automatic liquid filling machines

automatic 10 heads pneumatic vacuum filling machine for liquids linear auto filler equipment

Date:2015-08-27
Published by:PENGLAI INDUSTRIAL CORP LTD
Cel:+86-15811882441 +86-13077872898
Phone:+86-20-84206097 +86-755-25423447
Email£ºjackdu999@yahoo.com
Email£ºpenglaipacking@gmail.com

Contact



This liquid vacuum filling machine as a pure pneumatic equipment, no need of  electricity. Liquid vacuum filling machine is one of the most economical filling machines,

especially for perfume, toilet water and other low-dose aqueous products’ filling.

The type of liquid vacuum filling machine is your ideal choice of product line or stand-alone use .

di



vacuum glass&plastic bottle filling machine used for follow industry:

1.Cosmetic Industry: Lotion, Lipstick, Shampoo

2.Pharmaceutical Industry: Syrup, Injection

3.Food Industry:  essential oil, edible oil, liquid flavouring and etc.

4.Chemical Industry: Liquid Detergent,  chemical raw material,  Lubricating Oil., paint

Technical parameter of vacuum filling machine 10 heads:

Model

YX-VF10

Filling speed

100 bottlers

Filling scope

0-200ml

Filling precision

within±1mm

Working air pressure

4-6kg/m³

Filing nozzles

10 (according to customer)

Electrical power

AC220V, 50HZ

Dimension/weight

1200*700*1400mm

Conveyor belt

4M LENGTH

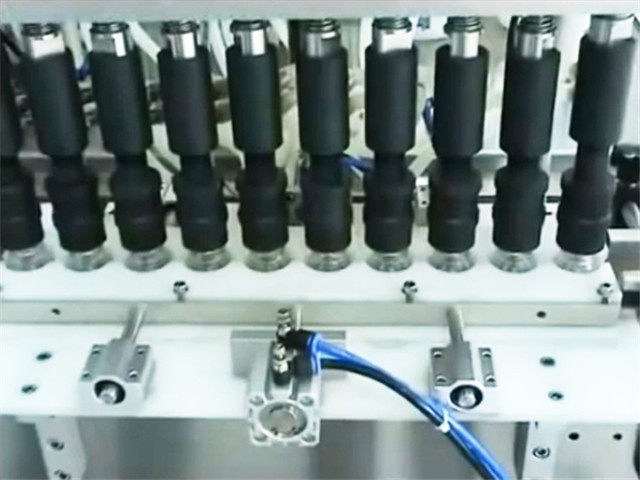

filling heads of automatic 10 heads pneumatic vacuum filling

Features of 10 heads pneumatic vacuum filling machine for all kinds of liquid linear automatic filler equipment

1.Liquid vacuum filling machine equipped with vacuum liquid level filling systems.

2.This type of liquid vacuum filling machine is pure pneumatic one, in line with  explosion-proof requirements.

3.The liquid vacuum filling machine equipped with return barrel of automatic   drainage systems.

4.The liquid vacuum filling machine’s filling bottle shape and consistency is noT critical required.

5.Liquid vacuum filling machine with simple structure, easy operation and  maintenance

6.The liquid vacuum filling machine filling agent especially for small doses.

7.No need of power, economical type of liquid vacuum filling machine.

Filling theory

This series of machine adopt “Vacuum calibrating liquid level filling” theory. Filling liquid will remain the same no matter the volume of bottles are the same or not.

The series machines easy to operate, the operator simply stuck in the bottle under the filling head or use pedal control, the filling will be executed.

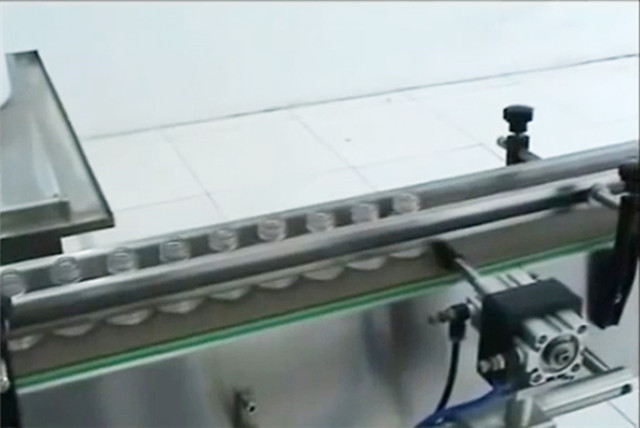

conveyor belt of the automatic 10 heads pneumatic vacuum fil

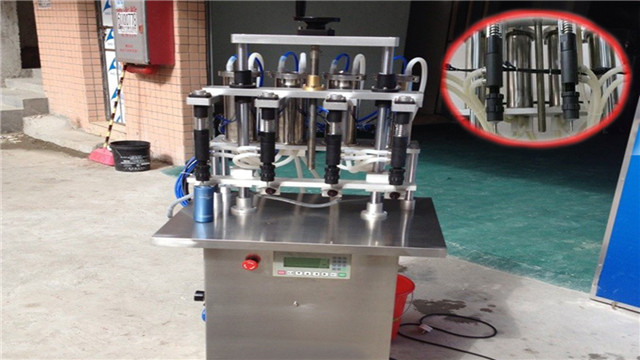

Sometime it is replaceable to choose the semi automatic vacuum filling machine YX-V04 for perfume filling ,the basic picture and videos are displayed as below:

semi-auto vacuum filling machine 4 heads.jpg

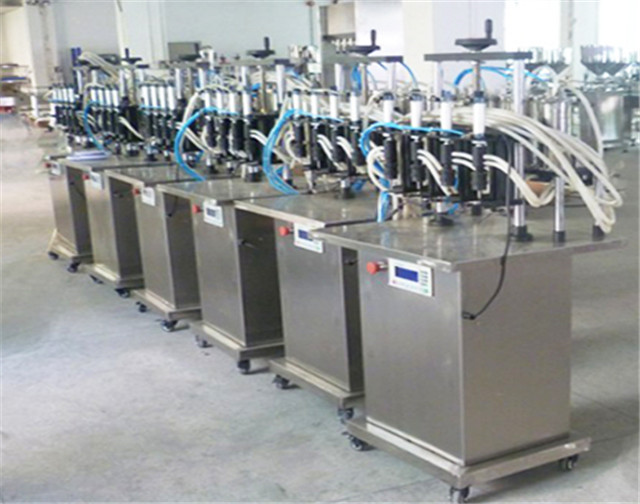

workshop view of automatic 10 heads pneumatic vacuum filling

Standard plywood packaging for exporting

shipment of  the automatic 10 heads pneumatic vacuum filling

After sales service: After sales service shall be done by the buyer. PENGLAI machine will provide all kinds of technical support to the buyer by telephone, fax or e-mail free of charge.

But any service cost to buyer's country is not included.

Guarantee: Three years. The supplier can replace only the elements that are imperfect for material or handwork. Replacement is free and ex factory.

All imperfect elements have to be delivered within 12 months (carriage paid). Guarantee excludes every worn or torn parts.

Replacement handwork is excluded and it will be done by the buyer. The supplier is not responsible for any rewards for, damages or last earnings met by buyer.

Guarantee is not valid if the machine is used the wrong way or it is not serviced as shown in our technical handbook.



PENGLAI INDUSTRIAL CORPORATION LIMITED
