YX-60A-C6 customized filling sealing machine for dried rice snack food packaging process：

Ⅰ.Process of production：

The line including：Automatic cups falling——Multiheads weighing filling——Film unwinding——Ribbon date coding function——Sealing1——Automatic position sealing2——automatic positioning cutting——Waste film collecting——Final product ejection——Delivery belt；

Ⅱ,Basic parameter of filling sealing machine customized：

Ⅲ. Processing、Materials-selecting requirements：

(1) Mould：The polished surface and accuracy should be guaranteed being processed by digital-controlled CNC system；Materials are made of GUANGDONG SHAOGUAN LF71 high-density anti-corrosive stainless Aluminum;

(2) Conveyor chains：Processed by standard of GB/T 1243,the 10A-1 extra-thickness stainless steel conveyor chains are in high precision；Thickness of chains 3mm; Origin Place：JIANGSHU province；

(3) Transmission parts：Motor and reducer adopted with double conveyor belt, From step device to reducer there is equipped with the double-lined chains; Bearing made of Stainless steel UCF207（Bearing Diameter35mm）；

(4) Reducer boxes：Hangzhou SK Brand Worm Gear: worm Gear Model No：8060；

(5) Step Box：PTF125 Accurate indexing cam，Shandong“Kewei”Brand；

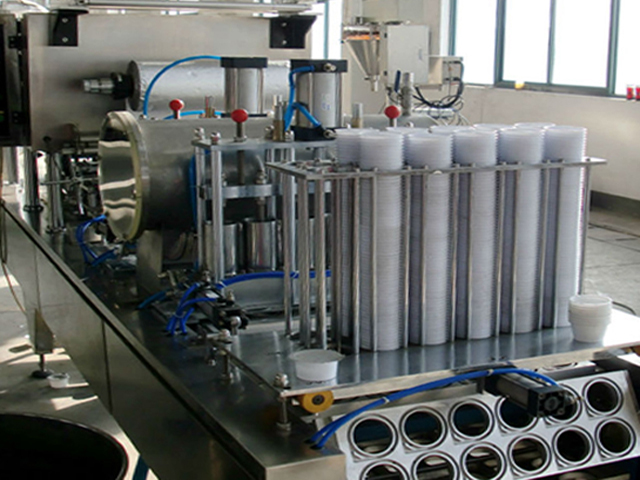

(6) Automatic cups delivering：Lateral type cups falling to save the spac；

(7) Filling：Multihead metering；

(8) Hopper：304 stainless steel；

(9)     Heating sealing：Two times sealing，Copper-casted heating sealing head，Thickened heater，H62 Copper heating head，Sealing2 automatic positioning，每Separating temperature-controlling meter for accuracy temperature；

(10) Cutting：Nitriding hardened gear stainless steel cutter，Automatic positioning，cutting sizes＜1.2mm；

(11) Controlling Cam：Jointed with step device for adjusting the machine conveniently（Repair workers no need standing on the machine for maintenance），Runing smooth、longevitive；

(12) Winding、Unwinding：Monoblock with the machine head for convenient assembly；

(13) Materials：Main body of machine is made of Stainless steel。

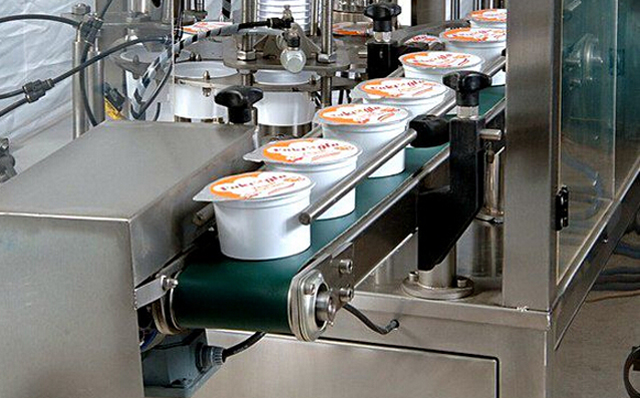

(14) Conveyor belt：Length 8meters，Width and height adjustable with the sealing machine，machine frame stainless steel，Conveyor chain delivery。

(15) Pneumatic component：Made-in-china Cylinder、Taiwan“AirTac”Selonoid etc accessory parts；

► Electronics components

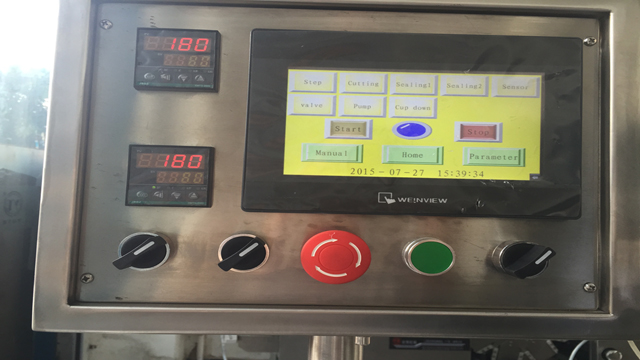

(1)     Made-in-china“winpark”Temperature-controlling device；controlling way of temperature-controller is digital-displayed way；

(2)     Joint Venture“JULONG”Optical sensor；

(3)     Joint venture“SUNS”Stroke switch；

(4)     Joint Venture“Kenair”Controlling switch；

(5)     Joint venture“HISUN”Invertor；

(6)     Other electronics adopts France Schneider。

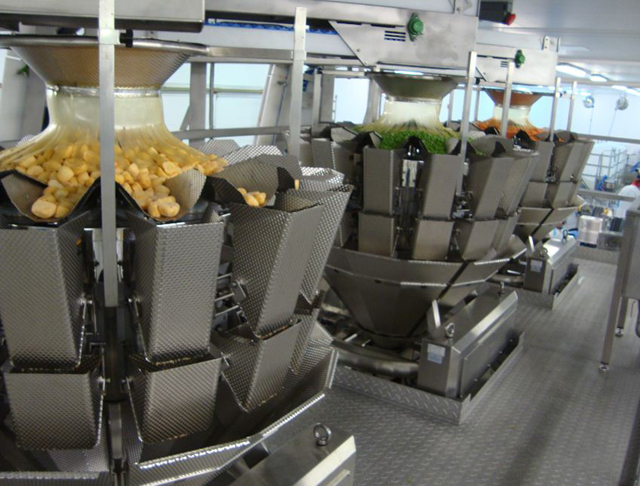

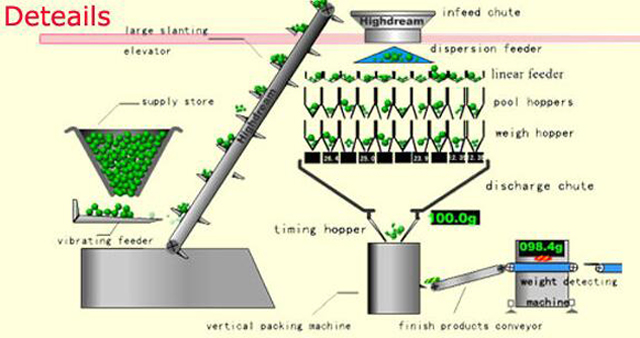

Multihead weighing metering filling system with automatic materials feeding system

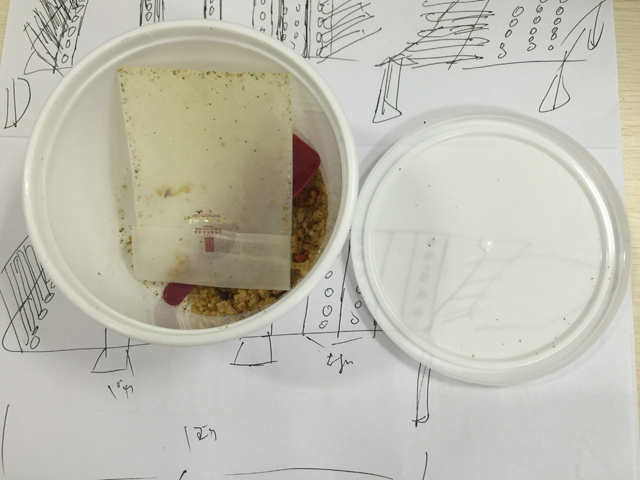

Samples taken from customers when we talked business in PENGLAI Factory

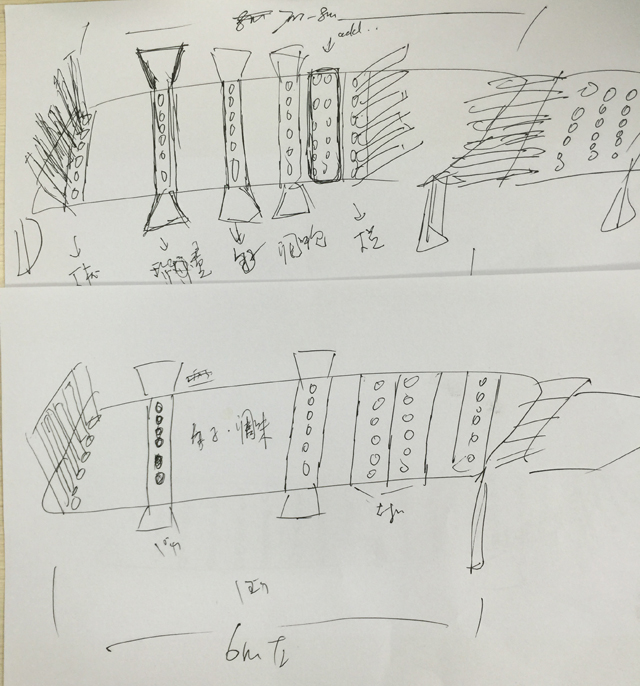

Handdrawing for the cups filling sealing line when meeting with customer

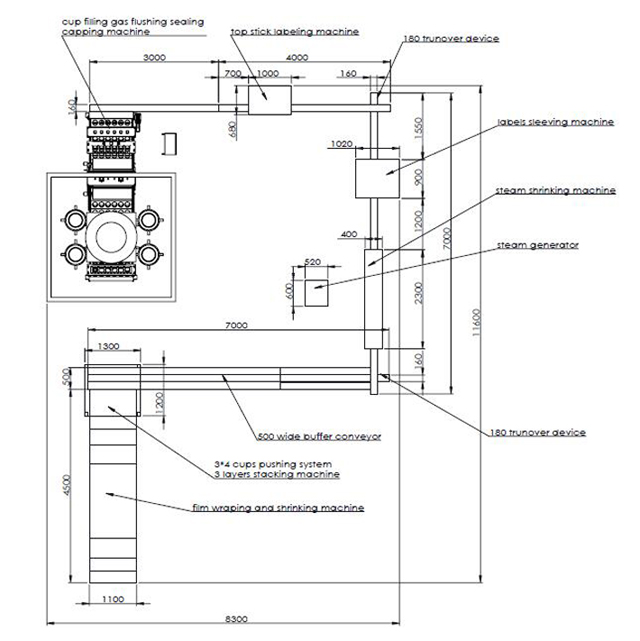

The whole layout system for cups filling sealing labeling shrink packing machinery

Packaging list together with machines：

Quotation: FOB (GUANGZHOU or SHENZHEN ) the below mentioned quotation based : USD$67,359

Package: Each machine wrapped by PO film, then packed to standard wooden case.

Production Lead: 30workdays after getting the down payment 30%,the other 70% payment collected before shipping

Packaging pictures about our machine exported

Guarantee: for all the machine, it claims one year for guarantee.(Excluded from the warranty are problems due to accidents, misuse , misapplication, storage damage, negligence, or modification to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)

Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine (The time of train depend on you worker). The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician USD50 per day. also you can go to our factory to do training.

After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as above).
