Automatic liquid filling machines

Medical liquid Filling capping labeling machinery oral liquid bottles automatic filler line

Date:2015-10-06
Published by:PENGLAI INDUSTRIAL CORP LTD
Cel:+86-15811882441 +86-13077872898
Phone:+86-20-84206097 +86-755-25423447
Email:jackdu999@yahoo.com
Email:penglaipacking@gmail.com

Contact

The line about pharmaceutical bottles filling capping labeling line with 5 vibrator bowls from 5 -100ml tubes is design and manufactured for our customers in Jordan,who will test the machine in our factory within these two week. Today we test the machine which run very well so now lists the machine for a reference one by one as below:



YX-10G Small dose filling and capping labeling machine

Technical parameter

Bottle specification5ml and 10mlmore larger volume can be order

Power220V-50Hz/ 1.2KW

Overall dimension: 2500×850×1600mm  weight: 600KG

Production capacity:

4 filling nozzle&2 capping head: 1200-1800bpm

Filling error: ≤±1% (Standard quantity )

Yield of capping-rotating: 99%

Functions:

1. The machine is used for Mitsubishi frequency motor control , easy      to operate ,stable and reliable operation

2 The machine is suitable for various specifications of bottles .

3. Regulation bound is wide; it can be foundation the cover the pathway magnitude and bottom level, adjustable screw machines in the framework of any regulation

4. Frequency capping round speed motor control, conveyor belt clip bottle. Electronic governor motor control shelters, and conveyor belt speed of pitch, use screw-cap regulation may be the best point.

5. Screw-cap, the cap will not skid, broken bottles of body will not nap, compared with claw-type screw machine, the work efficiency many times.

6.Adopt stainless pump in common use, or ceramic pump in special use to fill high precision, large range of adjusting dosage.

7. Ceramic pump installation system does not adsorption drug Chemical stability is good. Resistance high temperature, corrosion and wear

8 .Low level liquid tank, it is convenient to clean.

9. Filling system has the function of shrinking, no drop leak. Apply filling all kinds of viscosity of liquid. Filling nozzle is diving bottle to the machine, Economical and low space possessing.

10. Magnetic moment capping system, adjust, agree of tightness freely

11The whole machine is designed according to requirements of GMP.

 .AUTOMATIC LABELING MACHINE FOR 5ml&10ml VIALS



Model

Description of goods

Quantity(set)

Unit price (USD)

Note

LH-BS

Full Automatic Sticker Labeling Machine for Small Bottles

1

10300

Include 5ml automatic feeding



10ml automatic feeding

1

640



Total:





10940





We are the expert of making labeling machines, how to choose labeling machine is determined by the labeling size and bottle shapes and bottle size. According to you bottle dimension and shape, we would like to introduce and recommend you the suitable machine which we sold many to local china pharmacy factories and exported many other countries.

For more information about the operation of the machine,please browse our business youtube https://www.youtube.com/watch?v=wKetCpRYcaA

LH-BS Horizontal Self-Adhesive labeling machine

Horizontal non-drying glue labeling machine is widely used for such industries as food, medicine, fine chemical, cultural supplies, and electronics and so on. It is applicable for the labeling of the objects with small diameters and unable to stand up easily, such as oral liquid bottles, ampoule bottles, needle tube bottles, batteries, hams, sausages, test tubes, pens and so on.







The feeding part is specially designed the same as the video sent from you

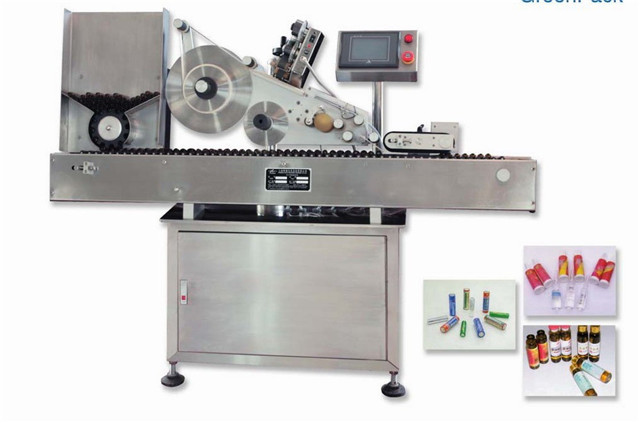

automatic horizontal self-adhesive sticker labeling machine.

details of the automatic horizontal self-adhesive sticker la

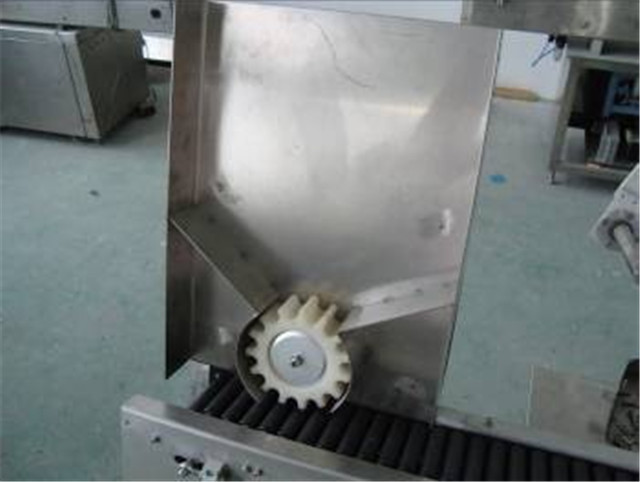

Ampoule bottles holder, the ampoule bottles will be feed by this holder.





The rolling is made of steel instead of plastic

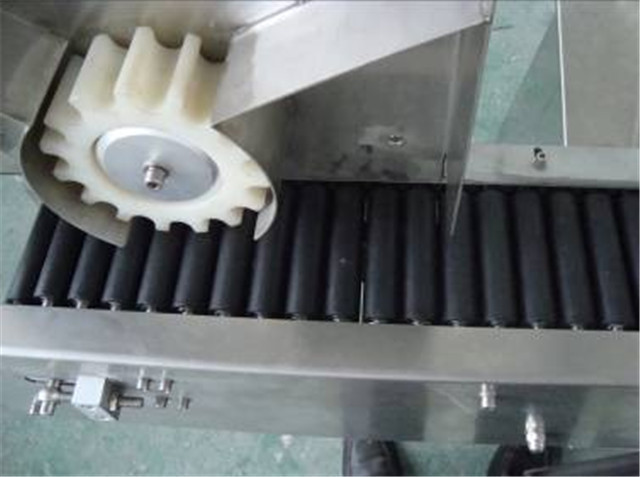

close view at the automatic horizontal self-adhesive sticker



Conveyor (High quality bearings inside will not damage the ampoule bottles)

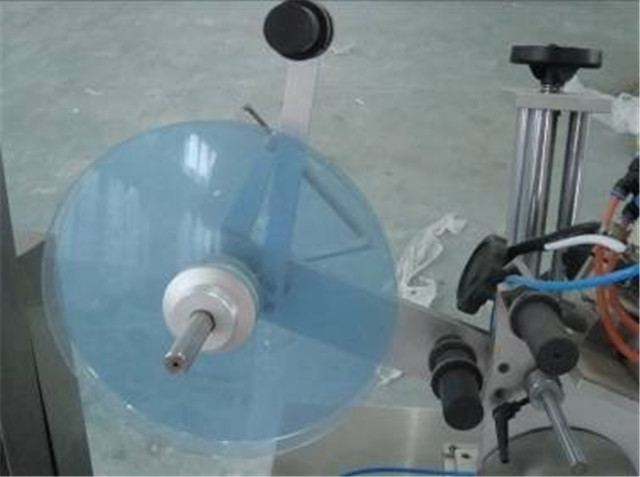

label roll holder of th e automatic horizontal syringe label



Label roll holder

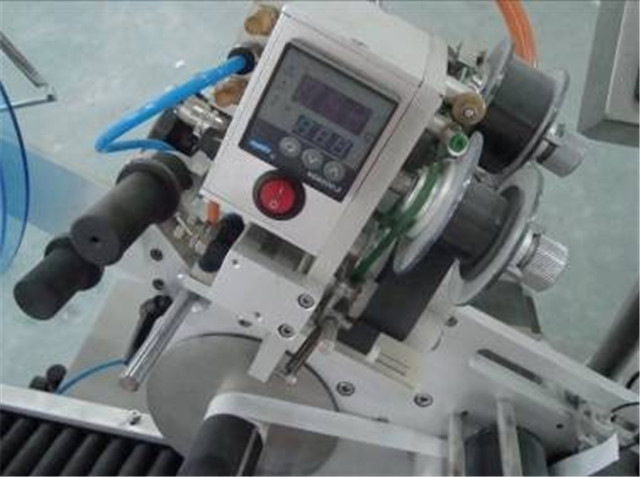

date coder of the automatic horizontal syringe labeling mach



Coding Unit for coding batch No., date on labels

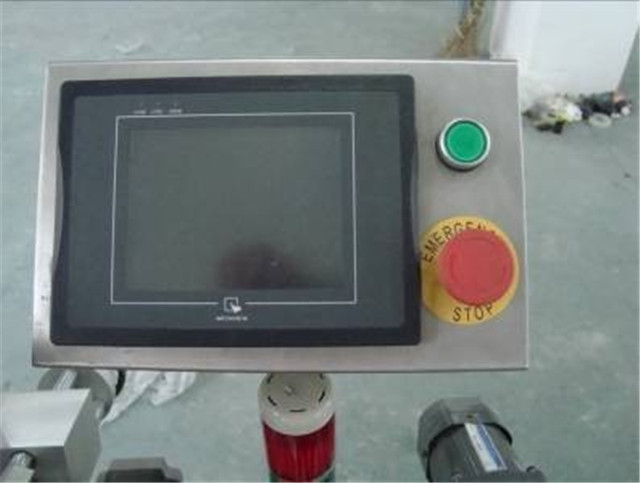

touch scree of the automatic horizontal syringe labeling mac



Delta Touch screen From Taiwan



motor for the automatic horizontal syringe labeling machine.



V.T.V motor from Japan

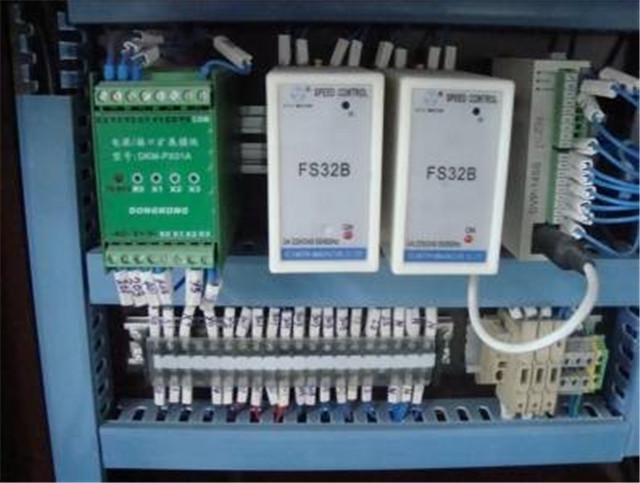

PLC of the automatic horizontal syringe labeling machine.jpg





Delta PLC from Taiwan

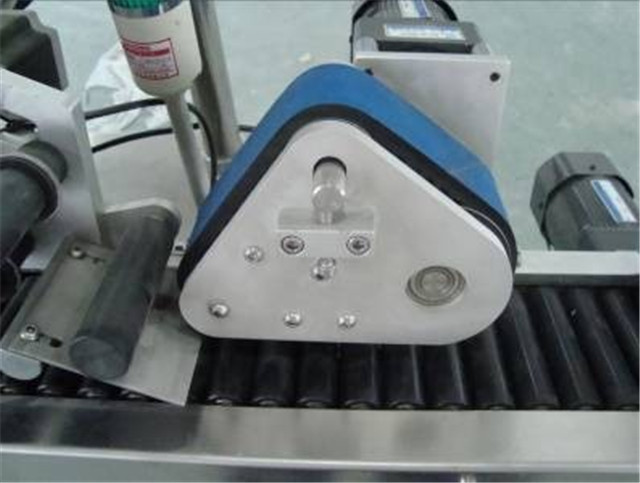

synchronous belt for the automatic horizontal syringe labeli



Synchronous belt for pressing labels and will replace a new one in one year

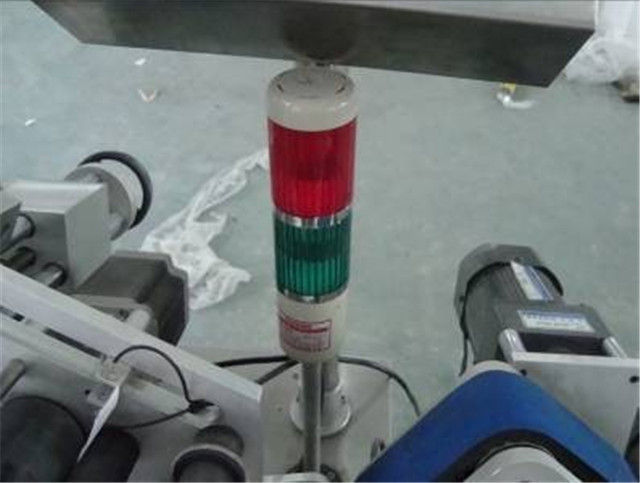

warning part of the automatic horizontal syringe labeling ma





Warning Unit (if no bottle, no label, the warning unit will work.)

Technical parameters

MODEL

LH-BS

DRIVE

Step motor driven

LABELING  SPEED

100300pcs/minute

LABEL  SIZE

width1090mm   length15100mm

PRECISION

+ 0.5mm (Subject to roundness and verticality of the bottle)

LABEL ROLL

Max:Φ300mm

LABEL CORE

Stander:Φ75mm

MACHING SIZE

1800X600X1400mm

WEIGHT

220kg

POWER

AC 110V/220V  50/60HZ     550W

CODING DEVICE

DT-280

Remarks:

1. Construction Material

Item

Parts Name

Quantity

Brand

1

Labeling Servo  motor

1

TAMAGAWAJapan

2

Labeling motor drives

1

3

Convey motor

1

VTV

4

Convey motor gear case

1

5

Volume label motor

1

6

Volume label motor gear case

1

7

Separate bottle motor

1

8

Separate bottle motor gear case

1

9



Label photo- electricity

1

SUNX (PANISONIC)

10

Label check photo-electricity

1

11

PLC

1

Made In Taiwan

12

Touch-screen

1

Delta Taiwan

13

Convey belt

1

Made in China

14

In-phase gear belt

1

Mitsubishi

15

Coding machine

1

Pneumatic/Electro motion

Mark:  all the sensors in the machine is the brands with either leuze electronic (GERMANY) or from  OMRON (Japan)

The rolling pad of LH-BS vial labeling machine is made of leather not sponge

2. Warranty terms: The seller warranty the machine for one year, and supply one year free spare parts with the machine.

3. Spare parts list

No.

Designation

Specification

Quantity

Remark

1

Synchronous belt



1 pc



For one years spare parts

2

Screwdriver

Cross type

1 pc

3



Straight type

1 pc

4

Character



1box

5

Nipper



1 pc

6





Sensor

Filling nozzels

leuze or OMRON  brand









Several sets



4. Terms for installations, starting-up and adjustment,

The seller should send engineers to carry out installation and debugging of the equipment in buyer's place if requested. The cost for International double ways air tickets, accommodations, food and transportations, medical and accidental insurance shall be paid by Buyer for the engineers. Buyer shall fully cooperate with Supplier's engineer and make all the installation condition ready to work. such as: water, electricity, raw material etc. Buyer should pay the worker’s salary as US$60/day per engineer during the installation.

5. Operation manual,

  The operation manual will be shipped with the goods and in English Version. Kindly please check e-mail

Attachment

System Parameters

■ Working Environment:

Temperature: 5 - 50

Humidity: 20% - 90% (No dew)

■ Working Power Supply:

Input: AC 220V ± 10% (50HZ)

Output: DC 24V ± 2V

■ Programmable Logic Controller:

Input: DC 24V 8-point transistor

Output: DC no junction 6-point transistor

Man-machine Interface:

Display: 5.7” FSTNLCD            Pushbutton: Touch screen



Our Factory since 1992 has been manufacturing the cosmetic&food making and packaging machinery.In these field we have the experience rich enough to solve the questions encountered by our customers from both home and abroad.For more information about various high quality machinery like filling capping labeling automated line with round vibrators for 5ml-100ml medicial tubes,please email via jackdu999@yahoo.com or browse our website www.cosmeticsmachinery.blogspot.com.
