semi automatic liquid filling machines

semi automatic dual head liquid filling machine magnetic gear pump liquid filler machinery

Date:2015-08-25
Published by:PENGLAI INDUSTRIAL CORP LTD
Cel:+86-15811882441 +86-13077872898
Phone:+86-20-84206097 +86-755-25423447
Email£ºjackdu999@yahoo.com
Email£ºpenglaipacking@gmail.com

Contact

Model YX-II 2 filling nozzles Magnetic Gear Pump Liquid Filling Machine with Double heads





dual heads liquid filling machine magnetic gear pump semi au


l 1)The gear pump is drived by magnetic power,the pump head and the motor is connected Without shaft.So there’s no need to worry about the burnout of the motor because of the high load of the pump.





l 2)Pump head and motor is imported from Japan,other components are manufactured in Taiwan,the function is steady and useful life is long.



l 3)Pumper head is made from 316L stainless steel,acid alkaline, corrosion-resistant.



l 4)The motor run is adjusted by potentiometer,the degree of accuracy of filling time can be

lower to 0.01 second,so that can guarantee the filling accurately,the deviation is under 2%.



l 5)Filling capacity is from 5ml-any volume according to your need.



l 6)Fully functional,can be operated by hand,intermittent pedal filling,automatic intermittent filling.Intermittent time can be adjusted.



l 7)Wide application,almost can be used to filling any flow liquid,especially suitable for oil,washing fluid,Acid base solution,,High corrosion resistance liquid.



Feature of model YX-II magnetic pump filling machine

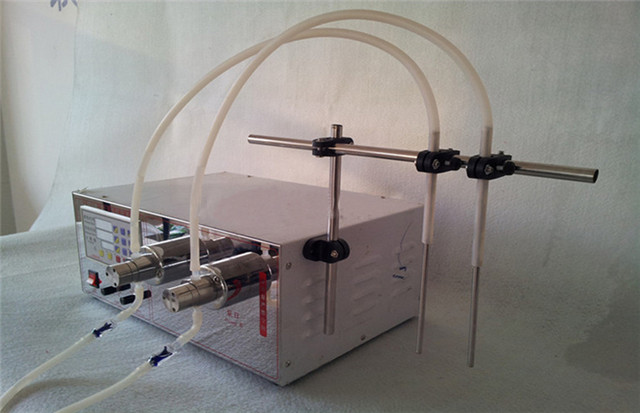

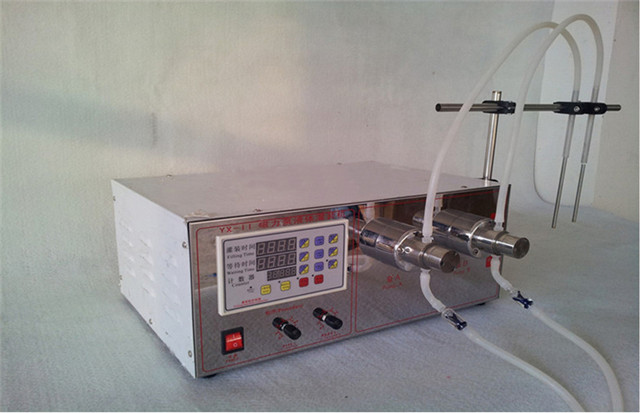

front view of the dual heads liquid filling machine magnetic


1)Adopts world-famous frequency conversion controller and imported high-precision multi-circle potentiometer & lockable dial, which makes the flow stable and accurate with a tolerance of -+2%



2) imported magnetic 316L stainless steel gear pump, with reliable quality and longevity



3) small size, easy to operate; convenient for cleaning and sterilizing



4) full function, automatic or semi-automatic available; can be used in production line



5) can be equipped with flexible filling nozzles; normally equipped with single nozzle

or double nozzles



6) can fill most types of liquids such as oil, beverage, perfume, water, ink, etc



7) large filling range from 5ml to 10000ml, can be conveniently regulated



8) complete 304 stainless steel mold, which reveals elegant and natural



9) micro-computer control, digital display, clear and easy to use



 Basic parameter of magnetic pump filling machine model YX-II



video of Single head magnetic pumps filling machine liquid



Operation

Automatic or manual operation both ok

Metering system

Gear pump

Pouring Quantity

100-500ml

Filling nozzle

2 filling nozzle

Producing Ability(time/min)

30-60bottles/min (adjusting to man speed)

Air Consumption

Voltage & Power: 0.24Kw

Measuring Accuracy

±1%

Shipping package size

L450*W410*H350mm

Weight(kg)

60Kg



Application

 filling nozzles of the dual heads liquid filling machine mag



1) Can fill oil, juice, perfume, ink, water, etc for all containers such as bottles, jars, cans, etc



2) Widely used in cosmetic, drinks, chemical, medical, food industry etc, which can highly improve productivity and product quality.

top view of the dual heads liquid filling machine magnetic g



3 heads magnetic pump filling machines
