cream paste filling machines

semi automatic vertical ceam sauce lotion filling machine

Date:2015-08-24
Published by:PENGLAI INDUSTRIAL CORP LTD
Cel:+86-15811882441 +86-13077872898
Phone:+86-20-84206097 +86-755-25423447
Email£ºjackdu999@yahoo.com
Email£ºpenglaipacking@gmail.com

Contact

vertical semi automatic cream filling machine

Application of vertical filling machine for materials with different voscosity

application of the filling machine for different viscosity m





     water                       honey sugar          acid cheese

     fruit juice                 shower   gel           gear oil

     liquid coffee           ink                          eye shadow fluid

     tea                          shampoo                  glue

     food/paint              washing hand fluid     cream

     milk                       liquid soap                  butter

     syrup                   plant oil

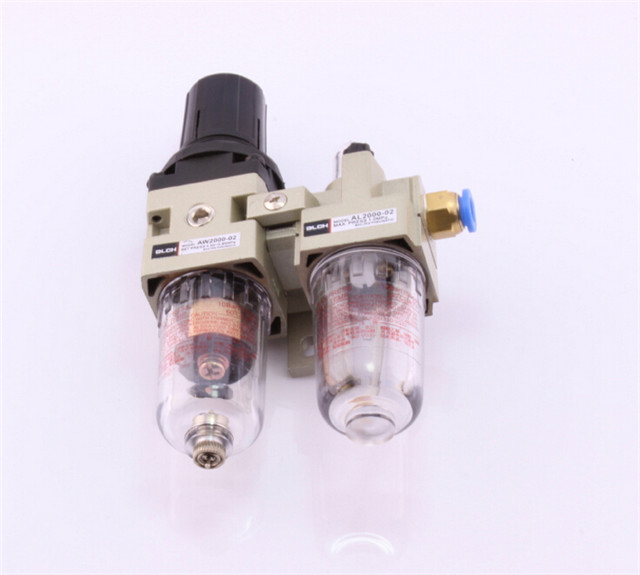

penumatic part of the semi auto vertical cream lotion sauce

This unit vertical filling machine adopts pneumatic components to replace electrical control circuit, so it is quite suitable for the use in the request of anti-explosion environment .

There are kinds of models according to the maximum filling volume of the customer’s request.

Specific models of YX series cream filling machine vertical:

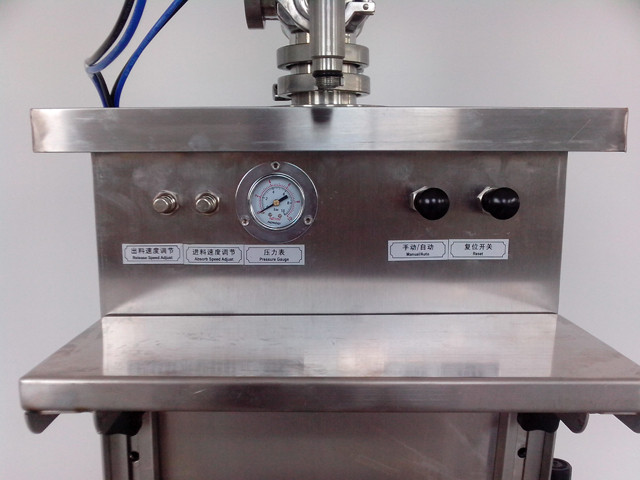

control panel of the semi auto vertical cream lotion sauce f

YX-GJ 5       (5-60ml)

YX-GJ- 10   (10-120ml)

YX-GJ- 25     (20-250ml)

YX-GJ- 50     (50-500ml)

YX-GJ- 100     (100-1000ml)

YX-GJ- 250     (250-2500 ml)

YX-GJ- 500     (500-5000 ml)

Capacity 15-150ml,25-250ml,50-500ml,100-1000ml(can be made as your demands)
Speed 20-50 bottles per minute(500ml bottle as example)
Precision <±0.5%
Size(L*W*H) 500*450*1580mm
Weight 65KG
Air pressure 4-6mpa



Feature on vertical filling machine cream semi automatic:

A. All adopt compressed air as the control, so they are quite suitable for the use in the request of anti-explosion environment, has high safety.



B. No phenomenon of static electricity, the leakage of electricity and no need to connect the ground wire



C. All adopt pneumatic control besides hardware positioning, so they have high filling precision as the precision can be controlled within 0.5%.

(With the greatest amount of filling as standards)

A nozzle is a device that is designed to control the direction of the fluid flow as it exits the filler into the container.  At Filamatic, our nozzles are fabricated to order, made from Type 316 stainless steel, and are available in a variety of types to provide drip-free, foam-free, and string-free fills with your product.

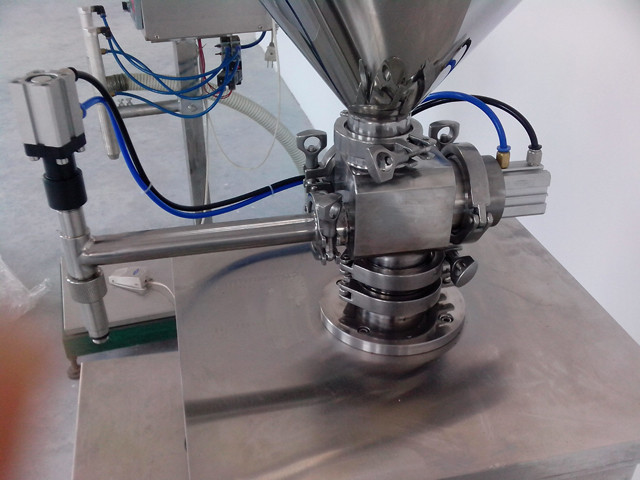

filling nozzel of the semi auto vertical cream lotion sauce

Nozzles Types

DN and DN/C:  Standard nozzle design, used with a majority of liquid products.

DNV and DNV/C:  Built-in check valve prevents dripping when filling low surface tension liquids.

DTVA/C and DTV-PA/C:  Valve-In-Tip nozzles provide positive cutoff for drip-free, string-free filling.  This nozzle is actuated by air pressure and used with foamy or non-foamy liquids.  (For use with Filling Units equipped with pressure relief valves.)

Videos for filling water and cream are avialable .

Work principle on semi automatic vertical cream filling machine:

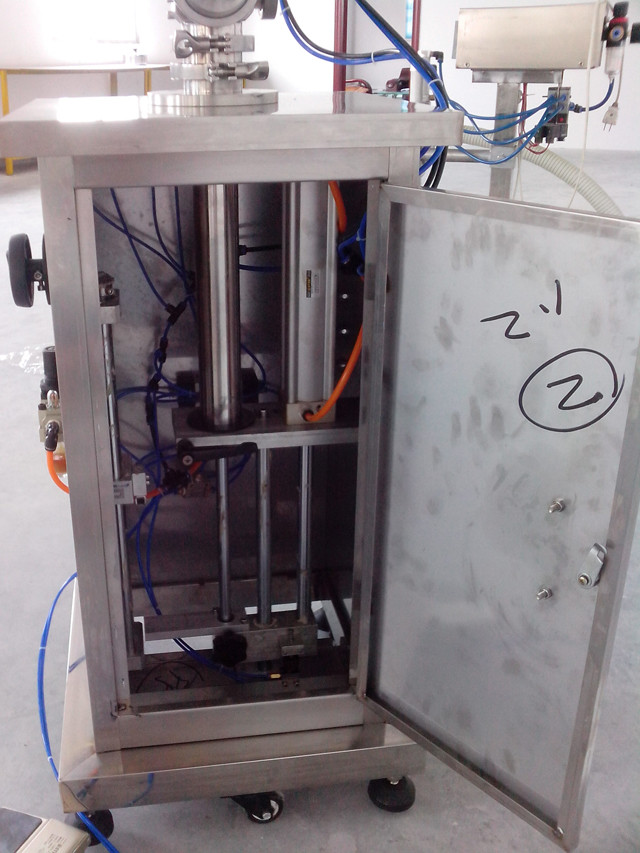

internal structure of the semi auto vertical cream lotion sa



A. Through the cylinder's movement of forward and backward to make the piston which is located in the cylinder do reciprocating movement, so as to occur the negative pressure in the preceding chest of the cylinder





B. The piston is pulled backward when the cylinder make forward movement, the material cylinder occurred negative pressure, the materials in the barrel are pressed into the feeding pipe by pressure and go into the material pipe through unidirectional valve of feeding and discharging materials .



C. The piston is driven forward when the cylinder make backward movement, the materials are pressed and go into discharging pipe through unidirectional valve of discharging materials, finally filled into the empty bottle which need to be filled, then one time filling finished.



D. It is a single and simple action to each time of filling for the piston filling machine, so it has very high filling precision and stability to every regular container



Structure:

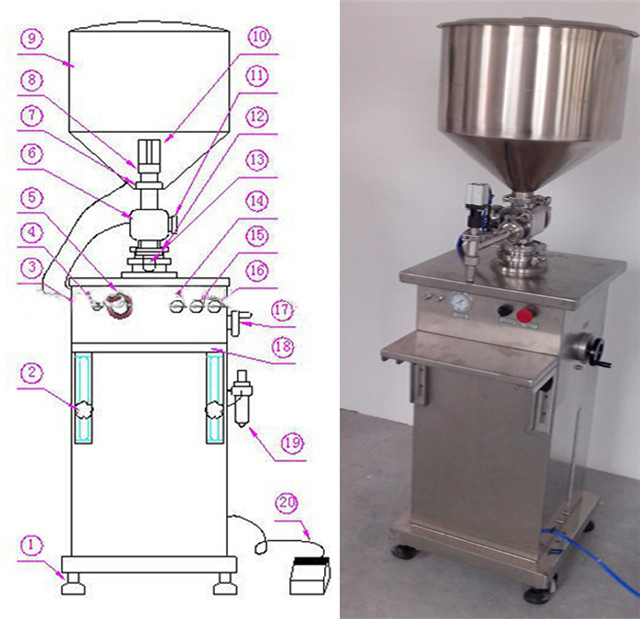

 schematic diagram of the semi auto vertical cream lotion sau



1. Foot                                                              2. Tray Positioning

3. Discharging Pressure Adjusting Valve   4. Sucking Pressure Adjusting Valve             5.Pressure Gauge                                         6. Material Jar Rotary Valve

7. Hoops                                                         8. Filling Nozzle Positioning  9.Hopper 10. Filling Nozzle Cylinder            11. Rotary Valve Hickey

12. Hoops                                                      13. Filling Nozzle

14. Manual/Auto Switch                                15. Reset Button

16. Air supply Switch                      17. Filling Capacity Adjusting Knob

18. Tray                                 19. Gas Routine Pressure Adjusting Valve

20. Foot Pedal Switch



Warning: For cleaning :



              The compressed air must be confirmed turned off.



                Forbid use the organic solvent to wash machine. such as gasoline.



        benzene, xylene, bananas water, sodium hypochlorite. etc



Other models for vertical filling machine cream YX series

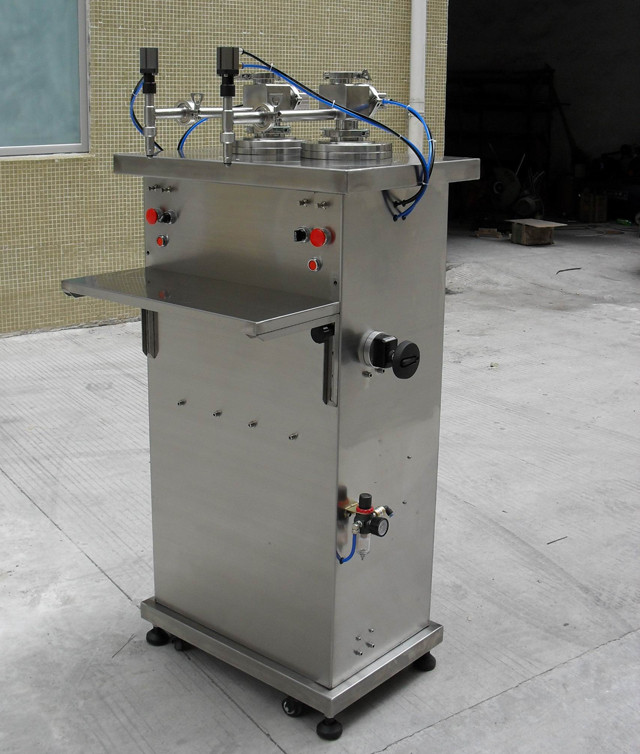

side view of the semi auto verical lotion cream sauce filler

cream filling machine with mixer&thermostatic setting

front view of the semi auto vertical  cream lotion sauce fil

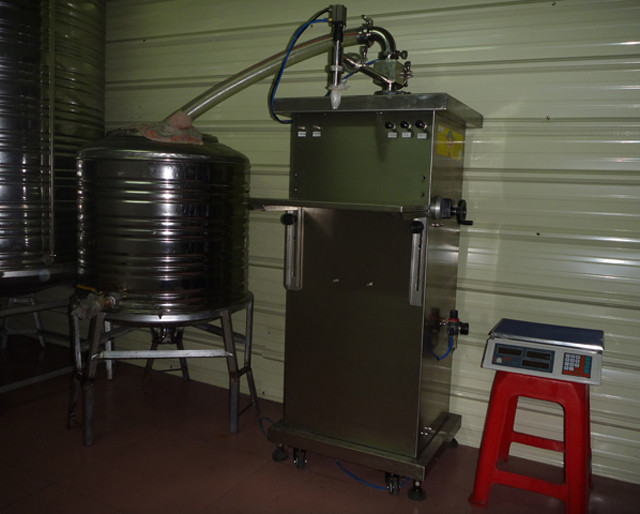

5Liter cream filling machine vertical without hopper

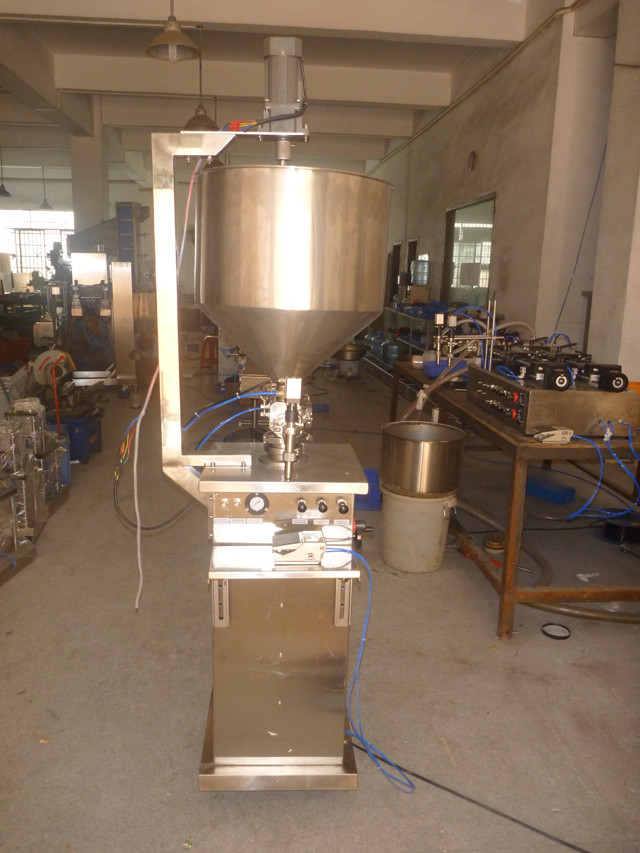

full view of the semi auto vertical  cream sauce lotion fill

Vertical filling machines 5Liters double heads without feeding hopper



SHIPPING&After-sales service for PENGLAI YX series filling machines

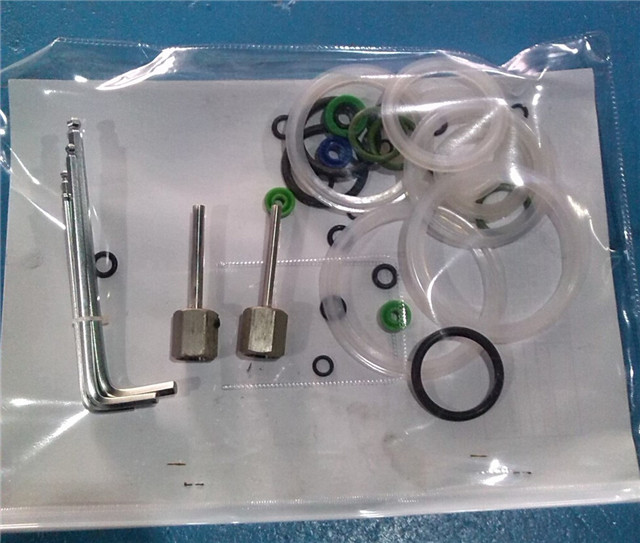

accessories of the semi auto vertical  cream lotion sauce fi

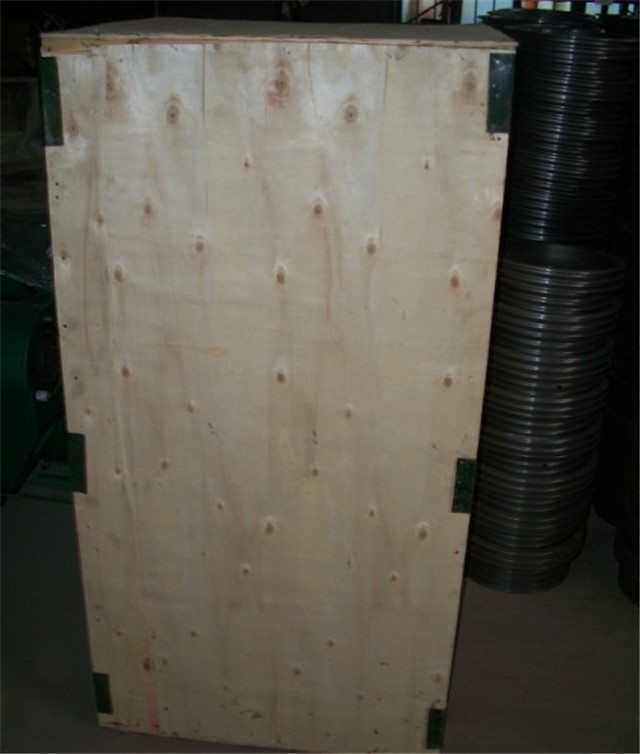

wooden case packaging of the semi auto vertical cream lotionertical filling machine vertical filling machine vertical filling machine

The above machine which we supply it to you, we supply you one year's after sales warranty, we can also dispatch our engineer to your factory to install this equipment and train your staff, but the Buyer should pay the round air ticket cost and arrange the hotel accommodation as well as the means for Seller’s engineer. We will send some free set of spare parts for you change it.

Payment terms: vertical filling machine vertical filling machine vertical filling machine

30% deposit by T/T before production, 70% balance should be paid by T/T before shipment. but we also accept L/C.

Package:

Standard wooden Case Packing

Shipment terms:

We usually take FOB, but we can also accept EXW,CIF,CNF.
