YX-V02 Vertical filling machine piston with 2 heads

Performance parameters of double heads vertical pistion filling machine:

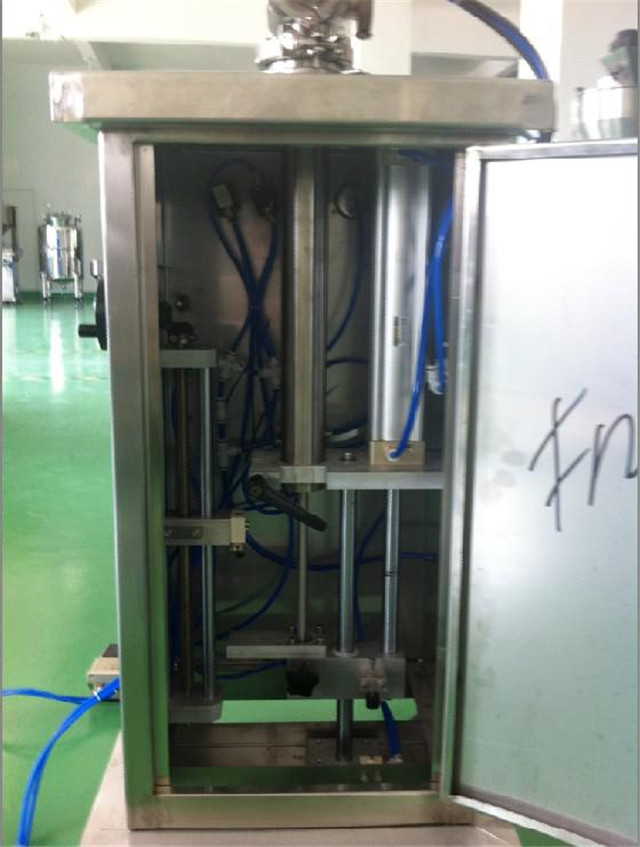

YX-V02 piston filling machines is designed to dispense a wide variety of liquid and cream, semi-liquid, semi-cream products and serve as ideal filling machines for the cosmetic, pharmaceutical, food, pesticide and other industries. This pure pneumatic machine is completely powered by air, which makes them especially suitable for an explosion-resistant or moist production environment. All the components that come in contact with product are made of food grade stainless steel imported, processed by CNC machines, and the surface roughness of which are ensured to be lower than 0.8.
Technology Parameters :

I. YX-V02  filling machine is controlled by compressed air, so they are suitable in explosion-resistant or moist environments.
II. Because of the pneumatic controls and mechanical positioning, this machine has a high filling accuracy.
III. The filling volume is adjusted by hand wheel, which provides ease of adjustment and allows the operator to read the real-time filling volume on the counter.
IV. When you need to stop the machine in an emergency, push the URGENT button.  The piston will go back to its initial location and the filling will be stopped immediately.
V. Two filling modes for you to choose--Manual and Automatic
VI. Filling precision:  + / - 0.5% ,
VII filling speed:30-40bottles/min(two nozzles)
Ⅷ filling range  250-2000ml

Packaging pictures about our machine exported

Guarantee: for all the machine, it claims three years for guarantee.(Excluded from the warranty are problems due to accidents, misuse , misapplication, storage damage, negligence, or modification to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)
Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine (The time of train depend on you worker). The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician USD50 per day. also you can go to our factory to do training.
After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as above).

PENGLAI INDUSTIRAL CORP LTD
