cream paste filling machines

semi-automatic small quantity bottle bag filling machine for powder pharmaceutical food cosmetic industry auger filler equipment

Date:2015-09-01
Published by:PENGLAI INDUSTRIAL CORP LTD
Cel:+86-15811882441 +86-13077872898
Phone:+86-20-84206097 +86-755-25423447
Email:jackdu999@yahoo.com
Email:penglaipacking@gmail.com

Contact

YX-F2 Small quantity auger filling machine for 1-50g





main purpose of auger type filler machine:

he packaging machine pesticides, veterinary medicine, premix, additives, milk powder,starch,

spices,enzymes, such as powder-feed quantitative packaging.

principle features of the powder filler machine

The semi automatic auger filler is equiped with mechanical, electrical, optical,one-in,

single-chip microcomputer control,automatic numbering,automatic filling,automatic adjustment

functions suchas measurement error

Fast the spiral of material, optical control technology

wide range of packaging the same quantitative packing machine in the 1-50g, through

electronic scales keyboard adjustment and replacement of materials of different specifications

for adjustable screw

.A wide range of applications a certain flow of the powder-like, granular materials can be

.high precision stepper motor and electronic weighing technology

Category for bags,cans category,bottles other packaging containers packed powder quantitative

.because level materials and the proportion caused by changes automatically tracking error can be

amended

Photoelectric switches control, only artificial bagging, pocket clean and easy to seal

Contact materials and parts are stainless steel production, to facilitate cleaning to prevent

cross-contamination

.Can be configured for the device, more user-friendly

Basic parameters of semi automatic auger filler:

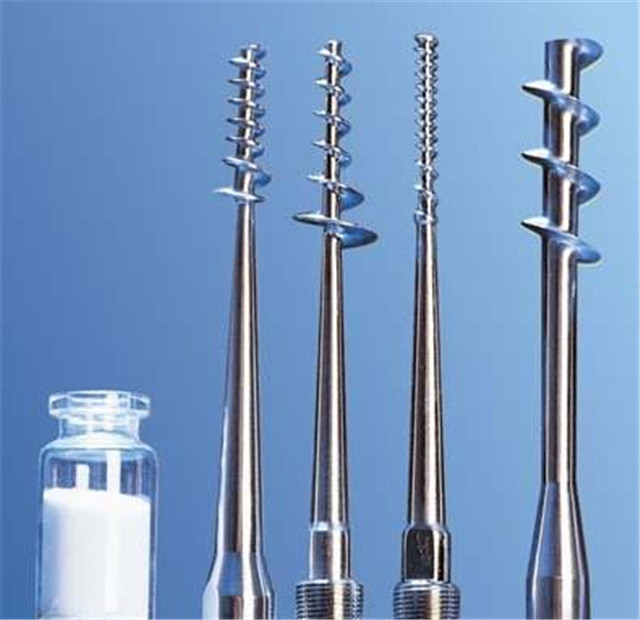

augers of the semi-automatic small quantity bottle bag filli

modelYX-F2

powerac110v.220v /60hz.50hz  300w

measuring accuracy:±0.3%

packing specification:1-50g

filling nozzle:6mm---50mm(customized upon request)

Hopper volume:20L

net weight70kg  gross weight100kg(standard export packaging)

packing speed1500-3000 bags/hourdepending on the packing specifications and materials

packing:wooden case  machine package size650×460×1300mm



Frequent Asked Questions about semi automatic powder filling machine:


1) Fill range: 1 g--50 g--->you mean 10mg up to 50 gram?

only from 1g to 50 g,that means it cannot fill the volume below 1g.
  • as you know the container does not affect the filling amount, that is to say you can fill 10g into a container as big as 1000g.There is no need worrying about it anyway.
2) Fill: is it fill like a 6.5 gram?
  • you can set the filling volume by controlling the PLC to get the certainl filling number,thus 6.5g is a normal gram.
3) Filling Nozzle:6mm--50mm ,4 pcs feed auger included which is showing picture.
                        also, available customized upon request.
  • the feed auger only one pcs for this filling range 1-50g .the pictures is for the filling range from 1-5000g which requires the four pcs of auger Price?.
         1-5000g price?
  • The price about 1-5000g price requires more screw auger,in total four pieces in total,thus the price is USD$4,410 .

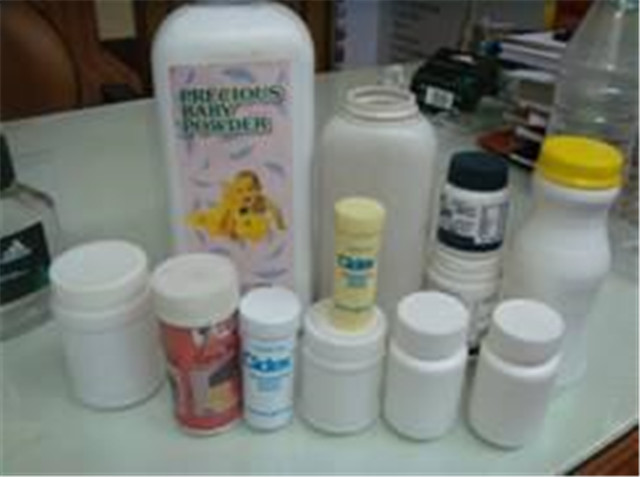

  • filled bottles by the semi-automatic small quantity bottle b
4) Certificate:,GMP/CE
  • CE certificate please check the attachment.
    Machine is designed according to the requirements of GMP
  • The machine is designed as normal in harmony with the GMP standard,about this please rest assured.
5) Contacts Parts:FDA approval quality?
  • the contact parts we often equip it with SUS316, which is in harmony with the FED approval.
    SUS 316=Stainless Steel 316?
  • Stainless steel 316 is equal with SUS316,it is right of you to equalize both.
6) Installation: is it difficult installation?
  • it is easily installed because you have not choose the feeder or conveyor belt system.
    the feeder or conveyor belt system.  Price?
  • The automatic feeder for materials with screw auger system is USD$1,920 .Check the CAD drawing about the machine with automatic feeder.The hopper is 100L ,power 0.75KW,45degree in change angle.Materials SUS304
7) After Service:What is the most problem? Is it do it yourself fix/maintenance?
  • three years quality warranty.the maintenance of machine is easy to do only for cleaning the hopper and filling nozzels at a certain period(about every 20 days)
8) Spare Parts list & prices
9) Option List & Prices
  •   Main electric parts brand:
    Inverter: Tan'an Taiwan brand, main motor: SHANMA, Shanghai brand, reducer: Gongji, Taiwan brand, fan: Best, Germany brand, Temperature controller: Yatai, Shanghai brand, proximity sensor: Riko, Taiwan brand; PLC Brand,TOUCH WIN.
  • Optional:  screw feeder;  conveyor belt system
10) Machine Weight: Net 40 kg, Gross 70 kg
  • the machine weight is about 65G net weight ,gross weight after packing 100KG for the one with hopper 20L
  • N.W 65KG -70KG this range.Weight after packing 100-105KG.
11) Packing:650X460X900(LXWXH) mm=wt 70 kg,wooden case,each machine wrapped by Polyethylene film,then packed with standard
  • 20L hopper semi automatic powder filling machine dimension 750X560X1300(LXWXH) mm,NW 70KG, GW 100KG

12)  Mesurement by Load Cell, electronic scale?

  •  The measurement is equipped with the Load cell,which meters more accurate than the electronic scale.
    the feed auger only one pcs for this filling range 1-50g : can fill 1 gram is OK?
  • Yes it can fill 1 gram because the filling range varies from 1-50g .

    Nozzle(Spout) diameter ? refer attached bottle picture, can fill bottle mouth dia. 5mm=1 g ?
  • The nozzels diameter often should be more than 6mm, so Normally speaking,it cannot fill the bottle with diameter mouth 5mm=1g .However if you must fill with the 5mm diameter bottles we can customize it meanwhile the price may be higher due to customized filling nozzles.

    Fill Speed(sec,min): 1g, 5g, 10g, 50g?
  • The filling speed among 1g/5g/10g it is not in big difference and the speed bounces from 40-50bpm while the 50g speed from 35-45bpm.

Packaging pictures about our machine exported

wooden crate packing of the semi-automatic small quantity bo

Guarantee: for all the machine, it claims three years for guarantee.

(Excluded from the warranty are problems due to accidents, misuse , misapplication,

storage damage, negligence, or modification to the Equipment or its components.

ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)

Installation: after the machine arrive your factory,if you need,our technician

will go to your place to install and test the machine and also training your worker

to operating the machine (The time of train depend on you worker).

The expenses (air ticket ,food , hotel,the travelling fee on your country) should

be on your account and you need paid for the technician USD50 per day. also you can

go to our factory to do training.

After service: If you get the problem on the machine ,our technician will go

to your place to fixed the machine as soon as possible. The cost should be in

your account.(as above).
