semi automatic liquid filling machines

dual head liquid lotion skin care cream filling machine semi auto pneumatic filler with vertical hopper

Cel:+86-15811882441 +86-13077872898
Phone:+86-20-84206097 +86-755-25423447


The machine liquid&cream filling double head is suitable for filling food trades(such as: pearl milk tea,nata de coco ,thick broad-bean sauce, chili sauce, peanut sauce etc);cosmetics(shampoo frost  shower gel);daily health product(toothpaste)

The machine cream filling pmeumatic semi automatic double heads adopts pneumatic working principle, simple operation, high filling precision, is a certain concentration or certain size granular materials ideal filling  equipment.


Basic features of filling machine double head model YX-LC05 series

 applications of the dual head liquid lotion skin care cream

1,Be used for filling with fluid liquid and other material;

2,Some of the materials used 316L stainless steel;

3,Full pneumatic control, easy to operate,remove and clean. Ideal equipment for filling inflammable, explosive materials.

Function of Control Panel from cream filling machines model YX-LC05 Series:

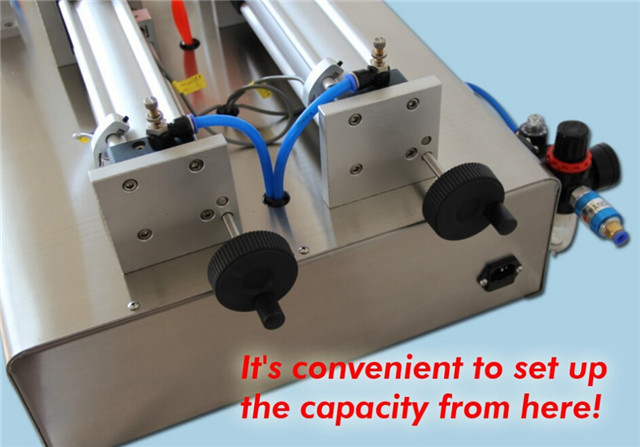

setting up of dual head liquid lotion skin care cream fillin

Semi Auto/Auto filling switch

Air Pressure Gauge

Air Intake Pressure Adjust

Filling Volume Adjust

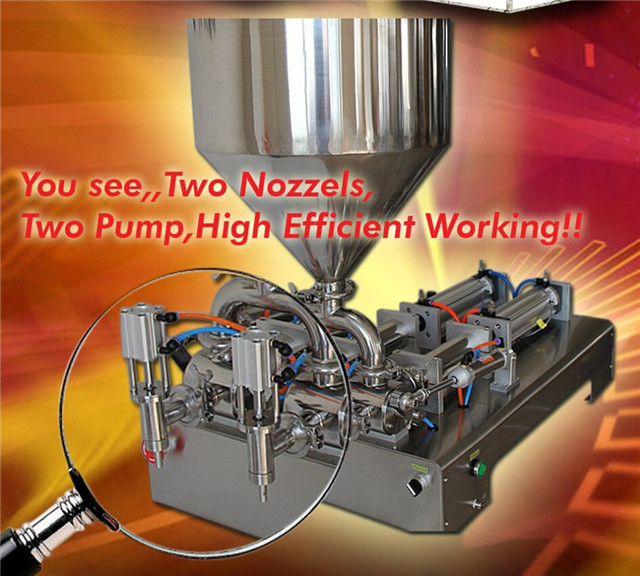

Model YX-LC05 Double heads liquid filling machine  semi automatic for 1000ml cream filling

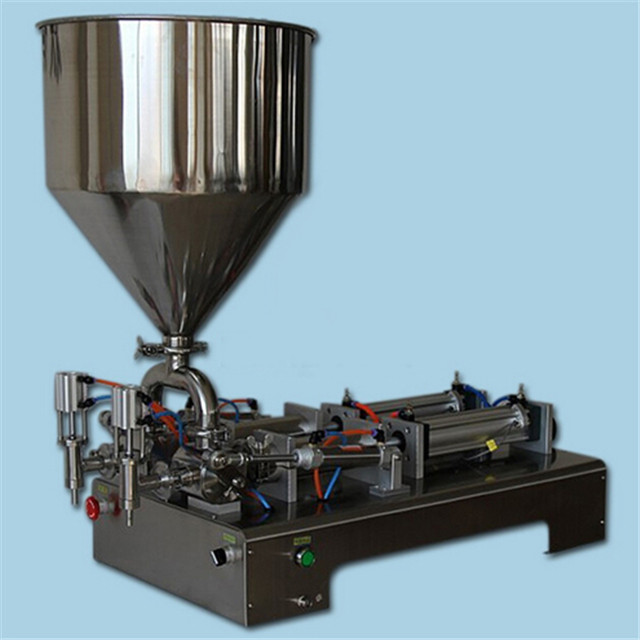

full view of the dual head liquid lotion skin care cream fil
Model YX-LC05-1000ml Double heads liquid filling machine
semi automatic for 1000ml cream filling
Material of machine : Stainless steel 304
Fillable range : 1000ml
Air pressure range : 4-6kg/cm2
Filling speed : 0-30bottles per minute
Net weight : 60KG
Gross weight : 80KG
Filling head : Double heads
Machine dimension:1200*550*595mm
Stainless Steel Body machine
Rugged Rotary Valve System Design
Pneumatic piston filling
Piston Feed Speed Adjustable
Anti-drip and filling head place and height adjustable
High Filling Accuracy (+/- 1%)

Detailed shot of double heads cream filling machine model YX-LC05 series

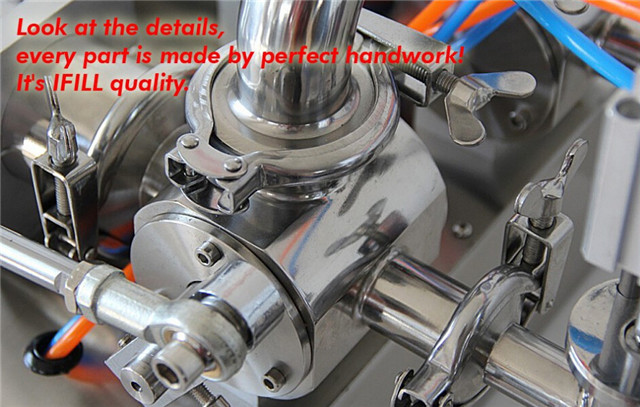

details of the dual head liquid lotion skin care cream filli

T-joint of the dual head liquid lotion skin care cream filli

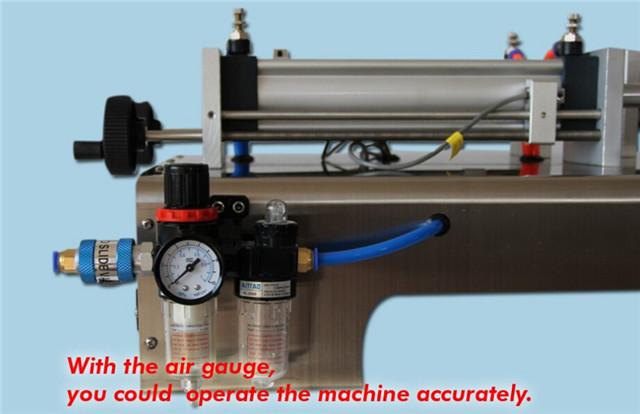

air gauge of the dual head liquid lotion skin care cream fil

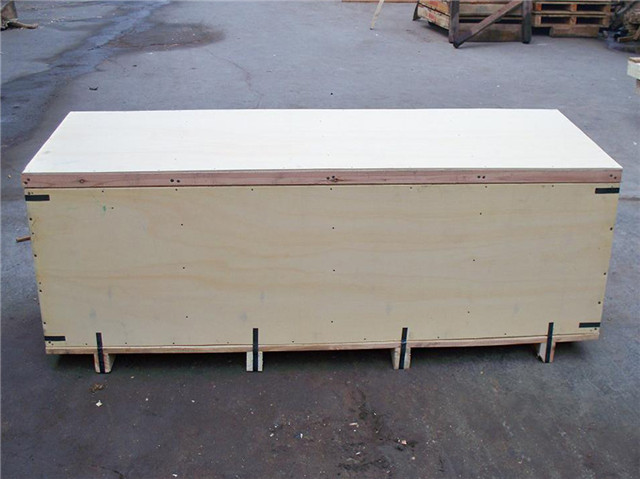

Wooden case packaging before DHL delivery door to door service

wooden case packing of the dual head liquid lotion skin care

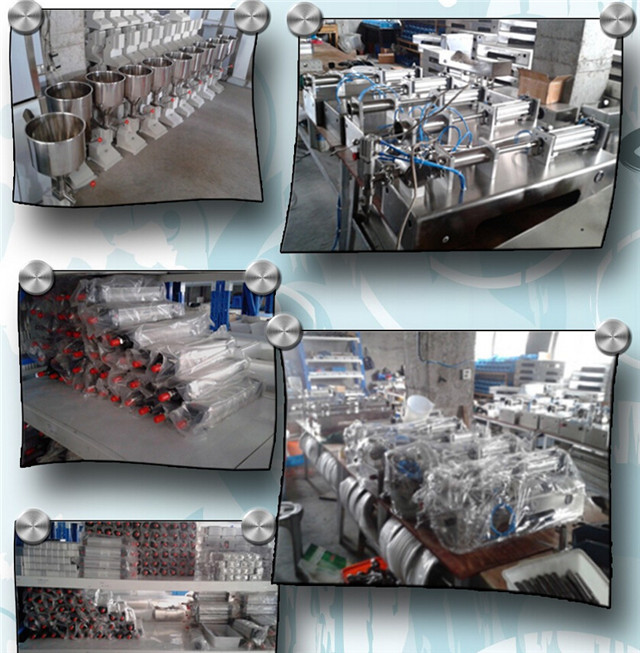

Machines in stock &plant for storing &manufacturing

stock of dual head liquid lotion skin care cream filling mac

FAQ on double heads liquid&cream&lotion&sauce filling machine model YX-LC02-1000ML

►Is it used for liquid or paste ?

 -- it is suitablefor pure liquid.

►What is the viscosity?

 --Suitable to fill low to high-density liquids (0 – 10,000 cps)

►what is the detail specification?

1).Material of machine:Stainless steel 304 meet GMP approved.

2).Fillable range :90-1000ml

3).Air pressure range  :  4-6kg/cm2

4).Filling speed : 0-30bottles per minute

5).Filling head:  single head

►How to Maintenance machinery.

1).Please regular inspection equipment the fuselage for stainless steel shell, when clean do not use tip, hard edge tool scrape the surface

2)Usable alcohol scrub surface besmirch.

3). wear the ring to change in time.

►Why buy it from you?

Because our products is high quality and lower price than other supplier, and meanwhile, we will supply you the better service for you, especially after-sale service. And we can give you Technical guidance, when it does not work effectively.

►Do you have warranty for it?

Yes, we have warranty for it. 12 months limited Warranty for defective items (excluding items damaged and/or misused after receipt). Accessories come with a 3-month warranty.

►Which ways can you shipping it?

We can send it by express UPS, DHL, FEDEX and EMS, for 3-5 days. Or if your order is lager quantity, we can send by sea, maybe it will cost a long time.

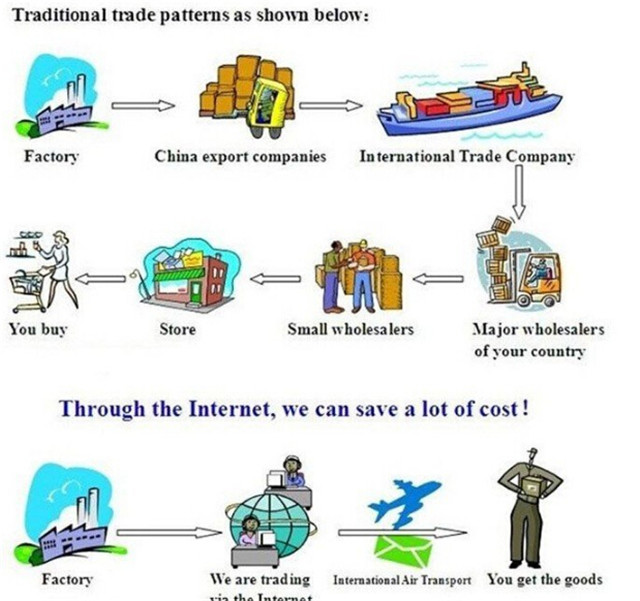

comparison of trade patterns for the filling machine.jpg
