cream paste filling machines

semi automatic tabletop food sauce high viscosity liquid filling machine with handheld moveable nozzle

Date:2015-08-20
Published by:PENGLAI INDUSTRIAL CORP LTD
Cel:+86-15811882441 +86-13077872898
Phone:+86-20-84206097 +86-755-25423447
Emailjackdu999@yahoo.com
Emailpenglaipacking@gmail.com

Contact

 Cream&liquid filling machine semi automatic for low viscosity liquid with handheld portable filling nozzles model YX-LC03


YX-LC03 Semi automatic horizontal filling machine for sauce thick lotion high-viscosity materials

Thick sauce food materials fully pneumatic semi automatic horizontal liquid lotion cream filler equipment

shampoo filling machine fully pneumatic semi automatic horizontal liquid lotion cream filler equipment

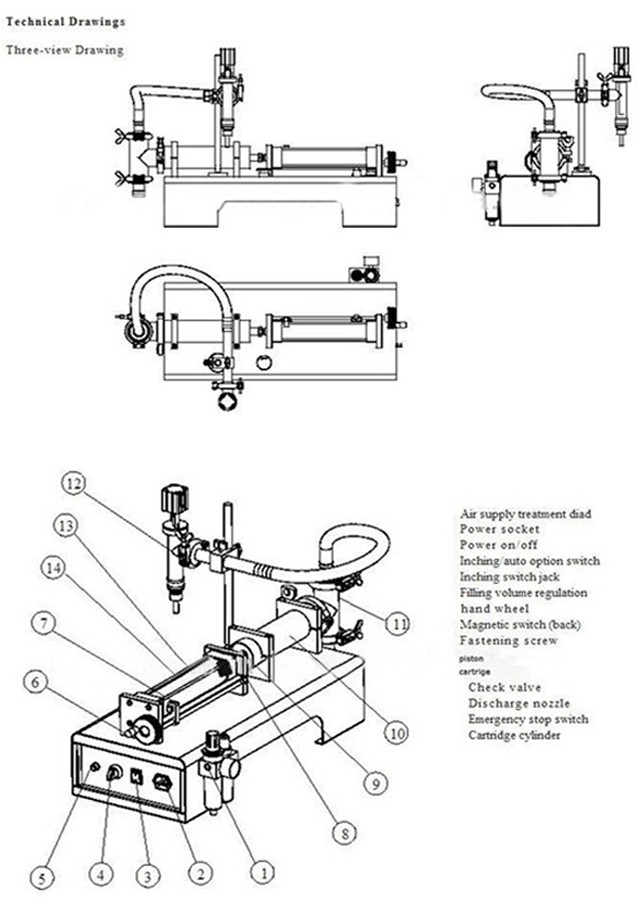

drawing of the semi-auto penumatic liquid sauce filling mach
Equipment Introduction for handheld filling nozzles horizontal self suction filling machine model YX-LC03


 This series filling machine is foreign advanced filling machine technology transformation

 and innovative products, its structure is simple and reasonable precision, easy to operate,

 user-friendly design more in line with the requirements of the modern enterprise.

Widely used in pharmaceutical, cosmetic, food, pesticides and special industries,

is a high-viscosity fluid, paste quantitative filling the ideal equipment.



In order to let the materials filling process get more fluous during filling it adds the hopper vertical for

containing the materials as well as the T-joint for connecting the hopper with the nozzles

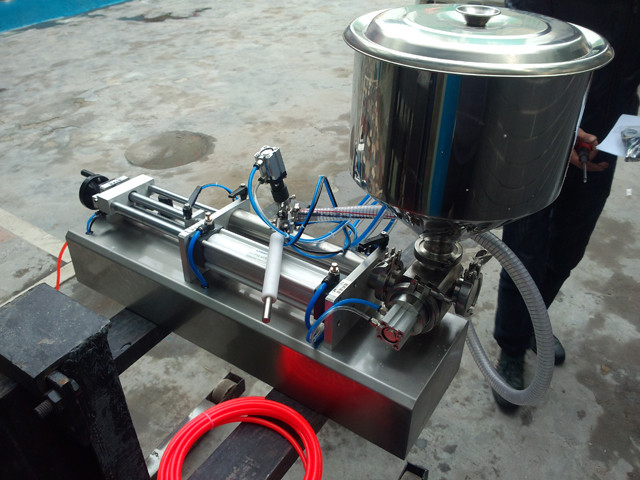

hopper of the semi auto penumatic liquid sauce filler.jpg

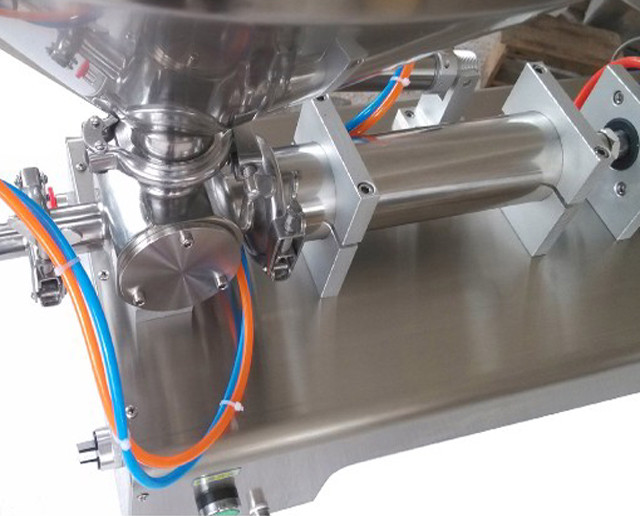

T-joint of the semi-auto pneumatic liquid sauce filler.jpg


Device Features of pneumatic filling machine semi automatic for shampoo/liquid detergent

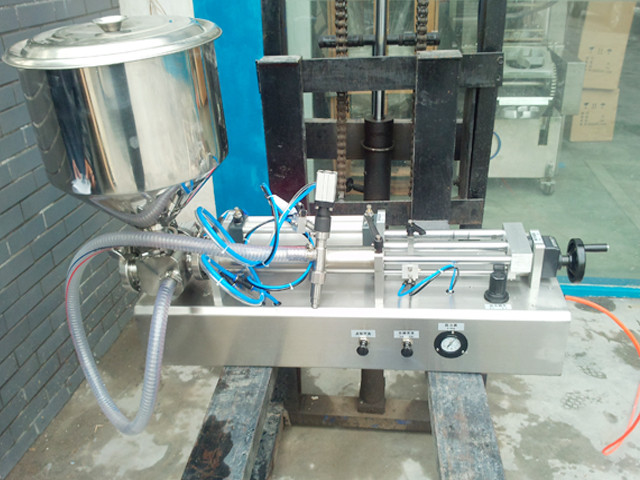

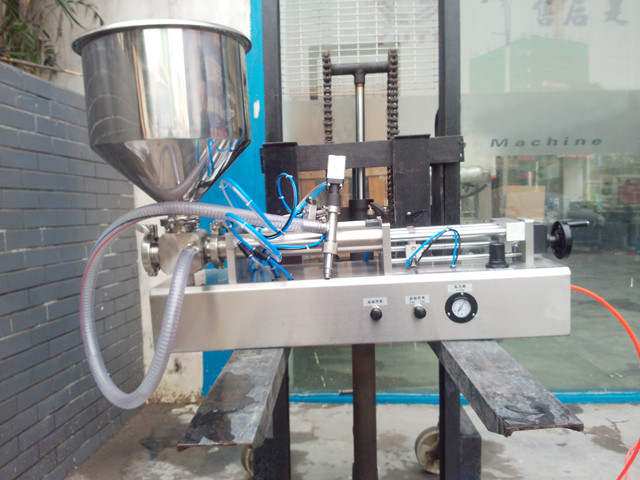

front view of the semi-auto pneumatic liquid sauce  filler.j

The series filling machine structure is reasonable, model compact, reliable, accurate, easy to operate,

the pneumatic part adopts power structure of Germany FESTO and Taiwan AIRTAC,

SHAKO other aerodynamic components.

Material contact parts are made of 316L stainless steel material, meet the GMP certification requirements.

According to user needs within the scope of any regulation models filling volume and filling speed,

high filling accuracy.

Filling head adopts anti-leakage and lifting filling device.

The main impetus for aircraft gas source, customers must bring their own air compressor equipment.

Technical Parameters of shampoo filling machines fully pneumatic:

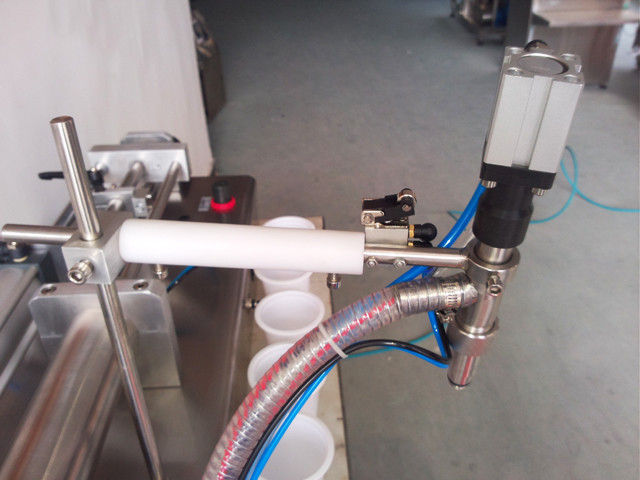

filling nozzle of the semi auto pneumatic liquid sauce fille

Model    YX-LC03

Voltage supply   220/110V 50-60Hz

Filling volume: 100-1000ml

Filling accuracy    ≤ ± 0.5%

Filling speed   10-40bottles / min

Equipped with air pressure   0.4-0 .6 MPa

With gas consumption   ≥ 0.1m3/min

Machine Weight   40KG

Machine size   1150x420x380mm

Filling materials in examples

filled pepper sauce by the semi-auto pneumatic liquid sauce

filled tomato sauce by the semi auto pneumatic liquid sauce

filled cream by the semi auto pneumatic liquid sauce filler.


Packaging&shipping for horizontal liquid filling machine with handheld filling nozzles:

packaging of the semi-auto pneumatic liquid sauce filler.jpg

1. WORLDWIDE SHIPPING. (Except some countries and APO/FPO)

2. Orders processed timely after the payment verification.
3. We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
4. The images shown are not the actual item and are for your reference only.
5. SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may
vary, particularly during the holiday season.
6. If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment
and get back to you as soon as possible with a reply. Our goal is customer satisfaction!
7. Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.
transportation of the semi auto pneumatic liquid sauce fille

Guarantee

1. 12 month Manufacturer`s limited Warranty for defective items (excluding items damaged and/or misused after receipt).
Accessories come with a 3-month warranty.
However, the warranty does not cover human causes. Warranty period has been exceeded, the shop will try to help buyers

give maintenance, and charge a fee of parts. Warranty freight incurred shall be borne by the buyer
2. Defective items MUST BE reported and returned within the warranty period (and in the original packaging, if possible).
You must tell us what the defect is and give us your order number.
WE DO NOT REPAIR OR REPLACE ITEMS WITH AN EXPIRED WARRANTY.
You agree to all of the above-listed policies upon ordering on Youtube  Channal

Feedback
Feedback is very important We request that you contact us immediately BEFORE you give us neutral or negative feedback,
so that we can satisfactorily address your concerns.



PENGLAI INDUSTRIAL CORPORATION LIMITED
