cream paste filling machines

automatic pharmaceutical capsule filling machine semi automated capsule filler equipment for medicines

Date:2015-08-28
Published by:PENGLAI INDUSTRIAL CORP LTD
Cel:+86-15811882441 +86-13077872898
Phone:+86-20-84206097 +86-755-25423447
Email£ºjackdu999@yahoo.com
Email£ºpenglaipacking@gmail.com

Contact

Fully automatic capsule filling machine is the newest designed equipment ,which totally meet GMP, ISO, and USA FDA requirement. This machine is very nice, decent, and easy to operate, especially the electrical control cabinet is independent from machine, which meet the requirement of FDA and CE, regarding to the safety of the operator¡£This is a newly created full-automatic closed intermittent capsule filling machine with multiple tamping stations.It completes the following process:feeding capsule,detaching capsule, filling, ejecting defective capsule,closing capsule, discharging finished capsule automatically. This machine can be equipped with vacuumm loader for capsules and powder, which reduces the wokers cost, and all the operation is conducted on the touch screen, which is a highly automation machine of water, electricity and pneumatic.



1. Accurate orientation, Capsule vacuum positioned mechanism to make the capsule upload percentage over 99%.
2. Freely adjusting dosage, easy speed selection and closed capsule length adjustment.
3. PLC program control panel with LCD.touch screen operation, and monitoring function.
4. Displaying in-time speed and accumulative output.
5. Auto-trouble shooting,lack of material, lack of capsule, block in material channel and other mechanical trouble, make alarm and stop automatically.
6. Electrical Appliance control system approved to CE, and international standard.
7. Quick and accurate change part set-up, easy to remove rotary table and ring carrier assembly.
8. Fully enclosed dosing stations and rotating table for integration of the whole capsule filling plants.
9. working station cam runs under the good lubricating condition, extends the operating life of change parts.cam is made by USA HASS CNC machine.

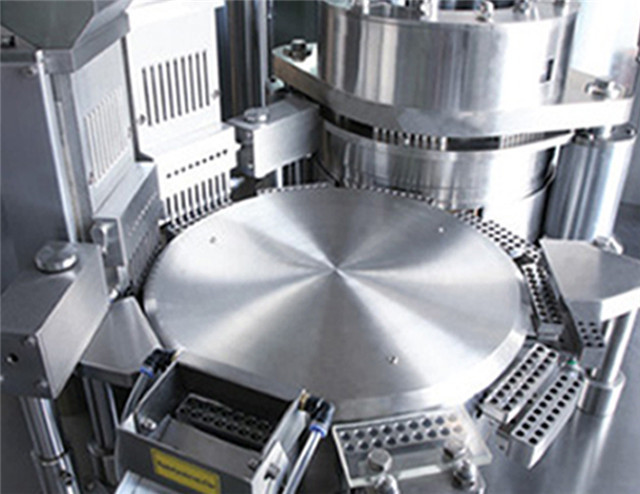

details of automatic pharmaceutical capsule filling machine


Technical parameter of fully automatic capsule filling machine:
Model  Output  No. of die orifice  Filling percentage   Power (kw)           Vacuum              Machine dimension   Weight (kg)   Noise emission
NJP800  48000     6            ≥ 99%          380V.50Hz 3.5KW   27m3/h-0.02~-0.08Mpa     1350*1020*1850        850Kg         < 73dB(A)

Semi automatic capsule filling machine is a new kind medicine packing machine which is new in the structure, attractive in the appearance. It adopts electrical equipment, the pneumatic to control, with the electron automation counting device, frequency conversion speed controlling, and the action such as taking the capsule’s place, parting, filling, locking being able to be accomplished respectively, instanding of filling by hands. It reduces labor intensity, improves the efficacy, filling accurately, according with pharmacy hygiene request. This machine is made of five-return capsule disengaging mechanism, medicine expects filling mechanism, locking mechanism, frequency conversion speed controlling mechanism, the pneumatic controlling and electrical controlling system, protecting mechanism, vacuum pump, air pump accessories and so on.It is used to fill various capsules home and abroad, and the finished product yield reaches more than 97%.
Use: used to fill the hollow capsule with powder, graininess medicines and chemical reagents and health care articles.



Features: frequency conversions speed controlling, lavatory maintaining. The capsules’ action such as taking the place,
parting and stopping the machine are all controlled with battery charging counting, the process is reliable.

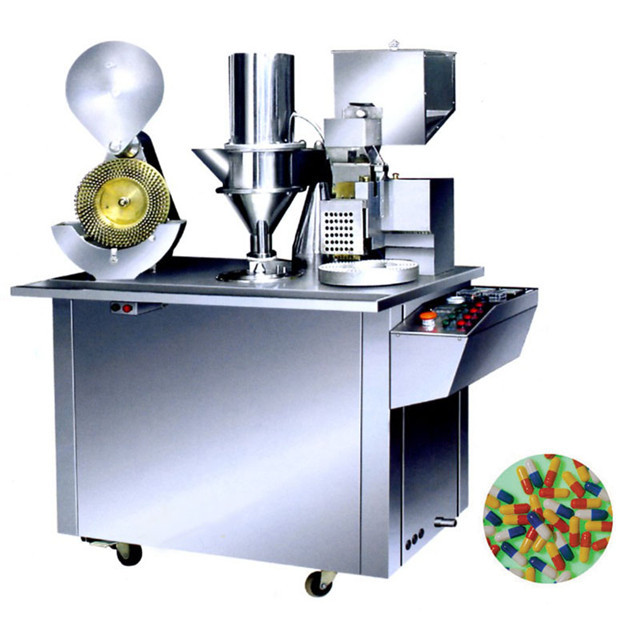

full view of automatic pharmaceutical capsule filling machin


Parameters of capsule filling machine:
Productivity  12500Pcs/H
No. of the filling Capsule No. 0,1,2,3
Power 2.2KW
Voltage 380V/50Hz
Diemension 1200x850x1600mm
Weight 450kg

After-sales-Service

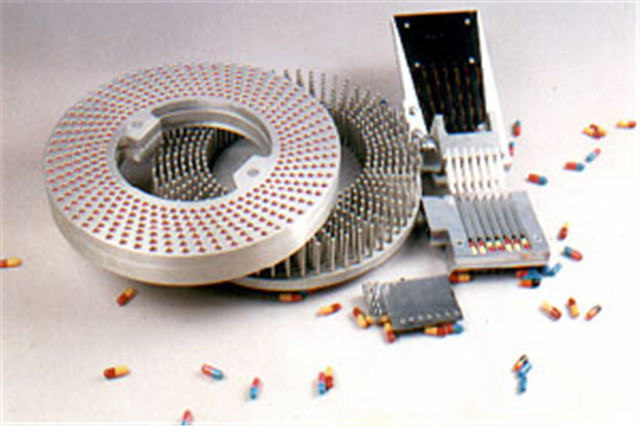

spare parts of the automatic pharmaceutical capsule filling


Warrantee: Three year warranty since the date of delivery,if there is any wearing part broken within the warranty and isn’t caused by improperly operation.
The seller should offer the new parts within the warranty period to replace the broken ones while the buyer should bear the cost about the new parts and shipping fee.
Installation and commissioning:the customer will pay the economic air tickets round trip & arrange the accommodation and food &the means for  engineers 60USD/day as salary for the maufacturer's engineers for installaiong and commissioning the equipments in the customer's plan

PENGLAI INDUSTRIAL CORPORATION LIMITED
