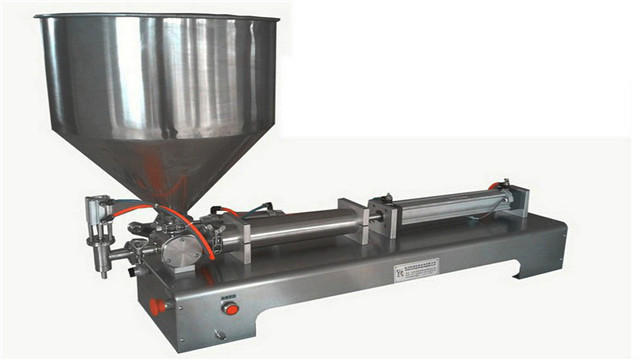

Ⅰ.YX-LC02 Semi automatic horizontal filling machine with Hopper for cream&liquid filling

Suitable  for  filling  cream/gel/paste/ointment  in  tubes,  jars,

bottles, cans etc.

Available in manual as well as motorized model

All contact parts are made up of SS304/SS316

Filling range with change parts: 5 to 5000ml per stroke

SS made hopper having capacity up to 20KG

Easy to operate, no maintenance required

Specifications

Voltage: 220/110V 50/60Hz

Power: 10W

Rated pressure :0.4-0 .6 Mpa

Filling speed :10-30 bottles / min / head

Filling precision: ≦ ±  1%

Filling range : 30-500ml

Dimension: 1600*440*370mm

Weight : 61kg

Principles and characteristics

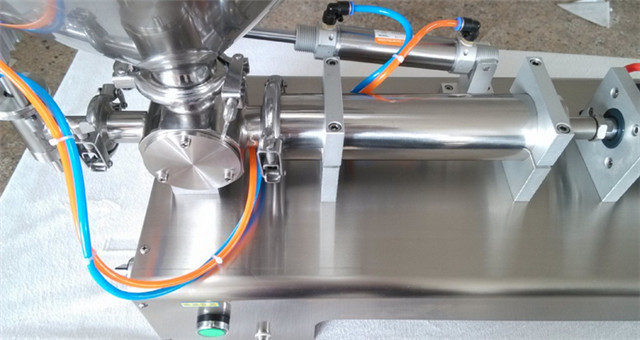

 The  paste  filling  machine  is  semi-automatic  piston  type developed  by  our  company,  filling  a  series  of  high concentrations of fluids. It is through air cylinder to drive a piston  and  transfer--valve’s  Three  Contacts  principle  to extract  and  to  split  out  the  highly  concentrated material, and  by  magnetism-reed  switch  to  control  air  cylinder’s travel, then can adjust the filling volume.

2.  This device is simple and reasonable in structure, easy to

understand, with high accuracy.

3.  Pneumatic  part  adopts  Germany  FESTO  and  Taiwan AirTac pneumatic components.

4.    Filling volume and filling speed can be arbitrarily adjusted

with high filling accuracy.

5. Filling  head  adopts  anti-drip,  anti-  drawing  and  lifting devices.

Control Panel:

Semi Auto/Auto filling switch

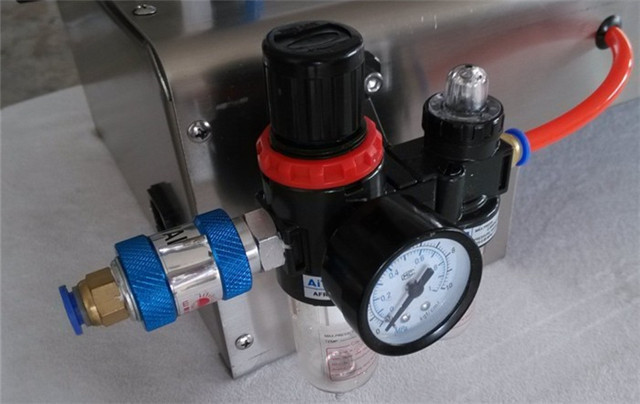

Air Pressure Gauge

Air Intake Pressure Adjust

Filling Volume Adjust

<1>The machine is suitable for filling food trades(such as: pearl milk tea nata de coco hick broad-bean sauce chili sauce peanut sauce etc);cosmetics(shampoo frost shower gel);daily health product(toothpaste)

<2>The machine adopts pneumatic working principle, simple operation, high filling precision,is a certain concentration or certain size granular materials ideal filling equipment.

FAQ for liquid&lotion filling machine fully pneumatic

Q: Why buy it from you?

A: We are manufacturer .we design it and produce it by ourselves, we could offer customers more supports and more professional service .You could rest 100% assure by buying it from us ,because we could supply you with technical support. And we could help you to fix problems.

Q: What can you do if my machine did not work?

A: Firstly, tell me the detail about not working. Secondly, our engineer would find out the reason why it could not work .Thirdly, we would send you the parts for replacement if necessary, or we would tell you how to repair it. We would help you fixed the problems.

Q: Would it be more expensive if I buy it from you instead of buying it from our local supplier?

A: We are 100% sure that it would be cheaper by buying it from us.  Because most of your local suppliers are importing such machine from our china and they have to add their own profit on the price. We are manufacturer , our price is the lowest price.

Q:How will you send it?

A: We would send it by DHL,UPS,FEDEX EMS which needs only 3-5days.

Q: Do you have warranty?

A: Yes, we do. we would offer 1year warranty, we would supply you the parts of free of charging in 1year.And we would supply you with technical support.

For more information browse our business youtube site   http://www.youtube.com/watch?v=R2NDNdGHs-w

Payment Terms&Packaging pictures about our machine exported

Quotation: FOB (GUANGZHOU or SHENZHEN ) the below mentioned quotation based

Package: Each machine wrapped by PO film, then packed to standard wooden case.

Production Lead: 20 workdays after getting the down payment 30%,the other 70% payment collected before shipping

Guarantee: for all the machine, it claims one year for guarantee.(Excluded from the warranty are problems due to accidents, misuse ,

misapplication, storage damage, negligence, or modification to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)

Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine

(The time of train depend on you worker). The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician USD50 per day.

also you can go to our factory to do training.

After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as above).

PENGLAI INDUSTRIAL CORPORATION LIMITED
